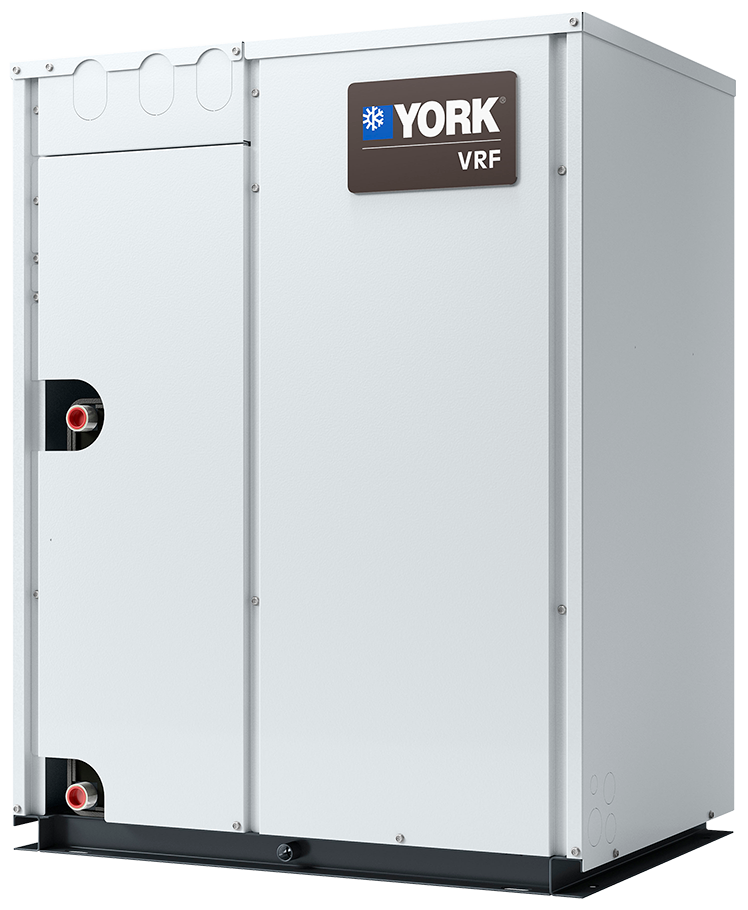

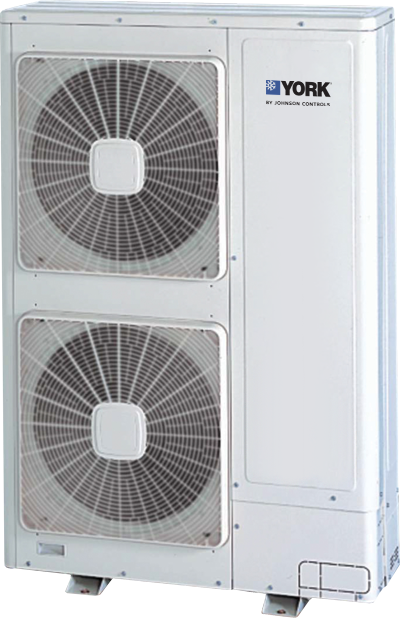

One or more outdoor units equipped with all inverter compressors modulate refrigerant flow to multiple indoor units via space-efficient refrigerant pipes.

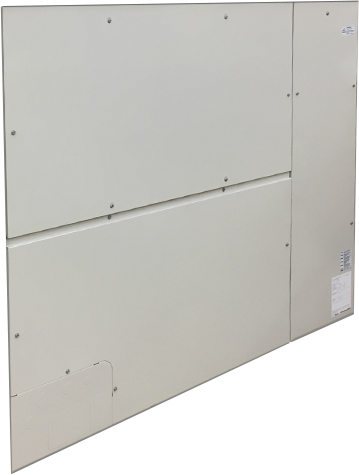

Outdoor units are available with different heating and cooling capacities.
Cooling operating range as low as -10F° and as high as 122F° and heating operating range as low as -13F°.

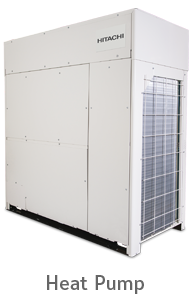

Single modules in 6, 8, 10, 12, 14 and 16 tons

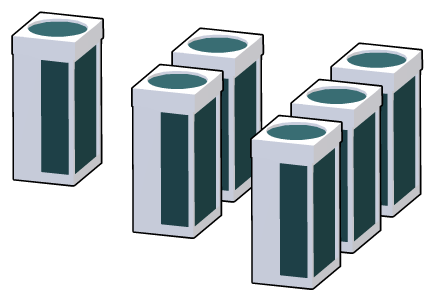

Modules can be combined to create correct tonnage, up to 36 tons.
Compact design allows for easy installation and provides flexibility in design.
Higher capacities at low and high ambient temperatures
Dual inverter compressors for improved comfort and efficiency through smooth drive control efficiency

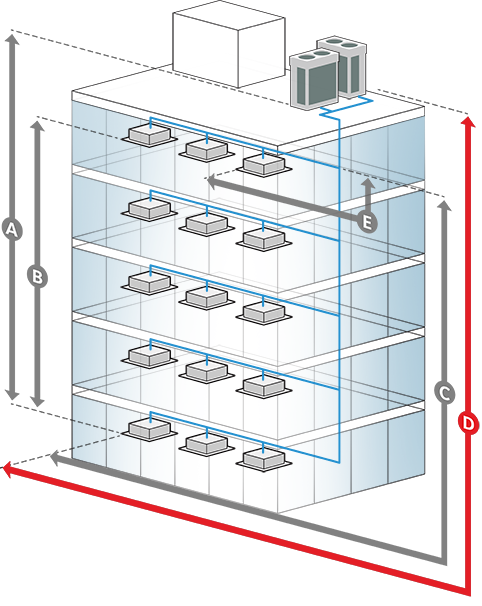

Design flexibility with connection ratios up to 150% and vertical piping lift up to 360 ft.
Ideal for projects where space is at a premium, for coastal and extreme-weather regions where the elements can be damaging to HVAC equipment and for projects where outdoor equipment placement is problematic.

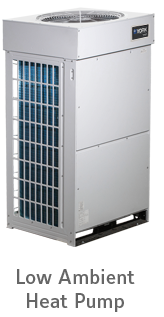

Single-phase heat pump units in 3, 4, and 5 Ton sizes offers efficiency and impressive versatility.
SEER up to 24.1
EER up to 16.7
HSPF up to 12.8
1 Outdoor Unit for up to 8 Indoor Units in multiple styles and sizes, including the Multi-Position Air Handler.
Compact footprints and low sound levels enable installation in areas with zero lot-line restrictions.
An extensive VRF line card provides the flexibility to customize to meet exacting requirements. Indoor units are available in a wide variety of configurations to fit almost any room design.

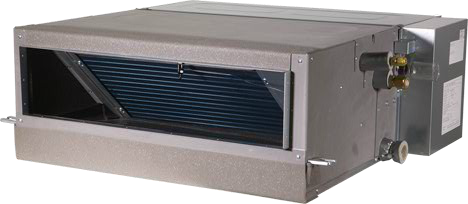

The ducted high static indoor unit offers multiple settings and a high-efficiency fan motor, with easy access for service.

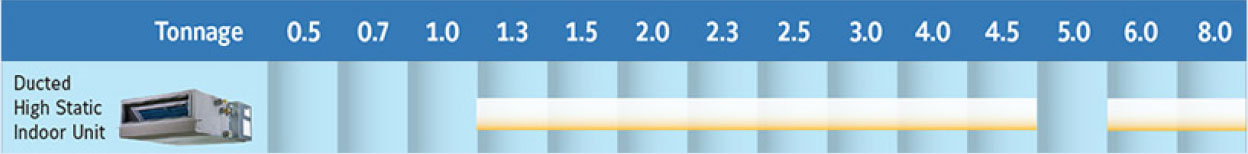

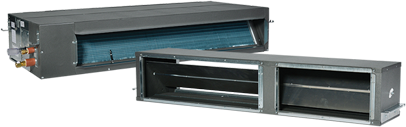

VRF Ducted High Static Indoor Unit
VRF Ducted Medium Static Indoor Unit

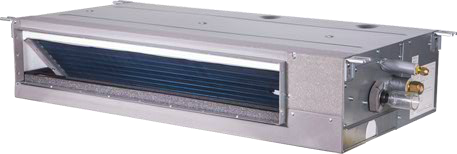

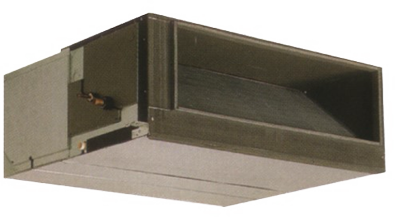

VRF Ducted Slim Indoor Unit

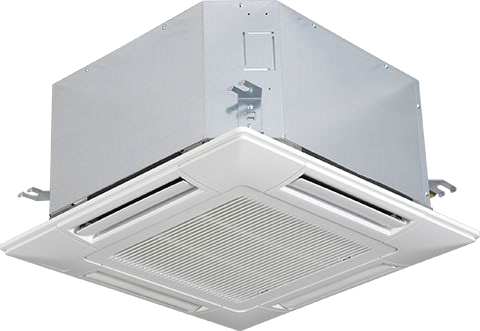

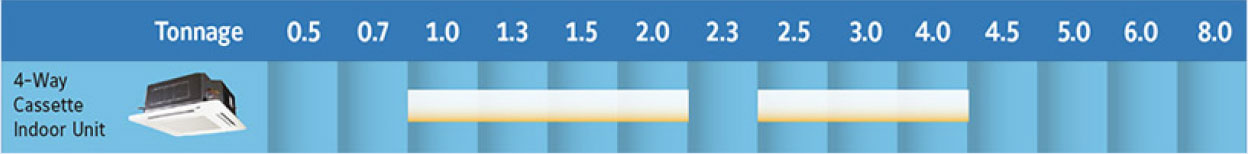

VRF 4-Way Cassette Indoor Unit

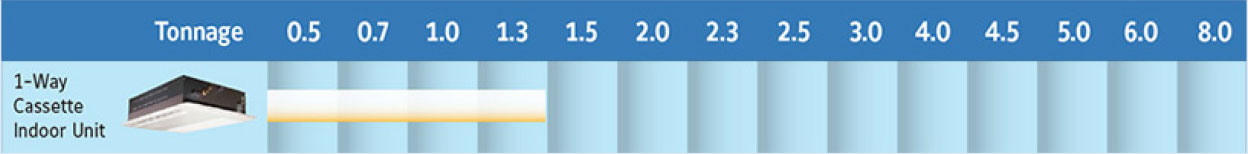

VRF 1-Way Cassette Indoor Unit

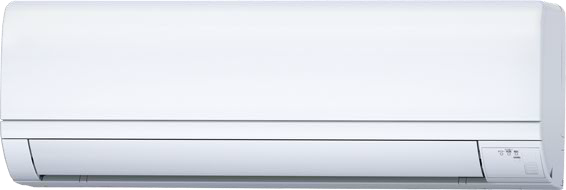

VRF Wall Mount Indoor Unit

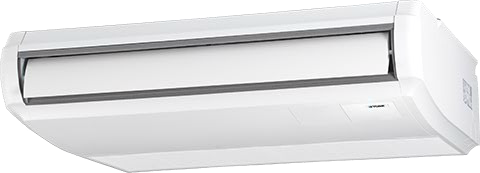

VRF Ceiling Suspended Indoor Unit
VRF Mini-Cassette Indoor Unit
Floor-Concealed Indoor Unit

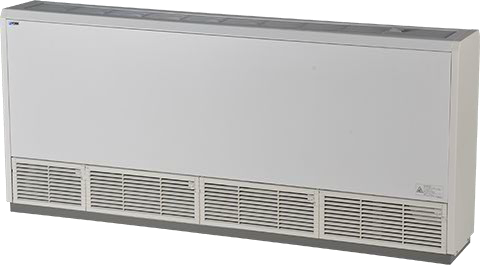

Floor-Exposed Indoor Unit

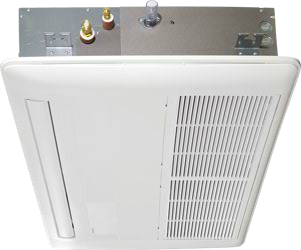

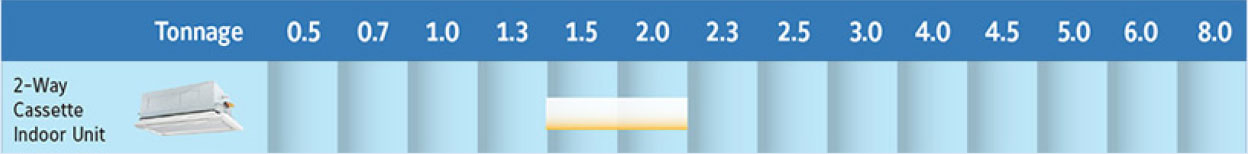

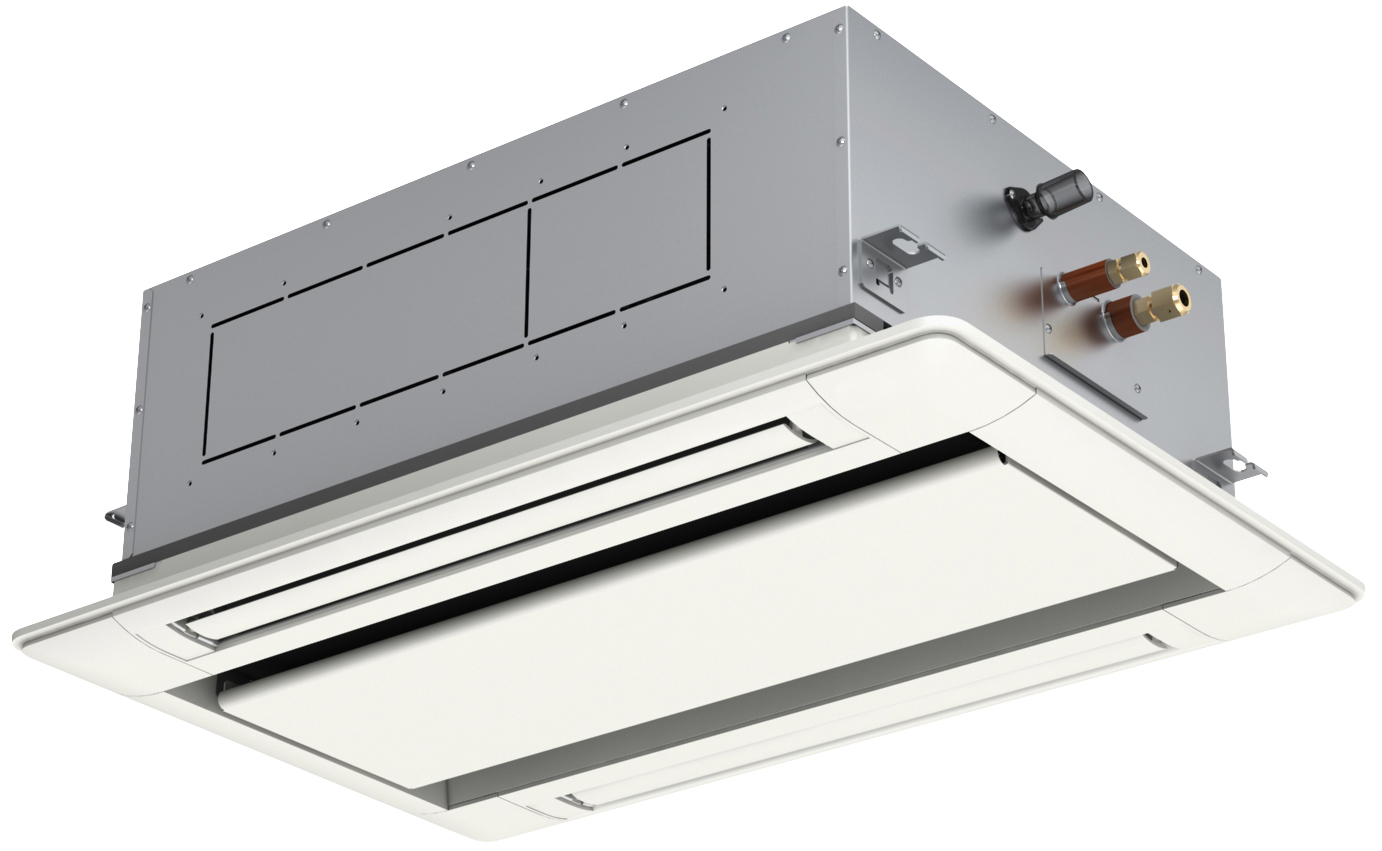

VRF 2-Way Cassette Indoor Unit

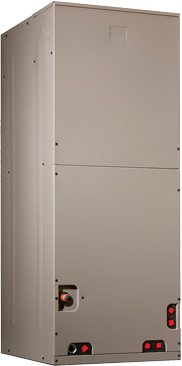

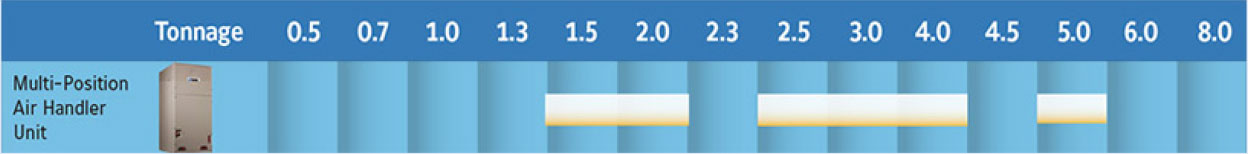

VRF Multi-Position Air Handler
DOAS Indoor Unit
EconoFresh Economizer

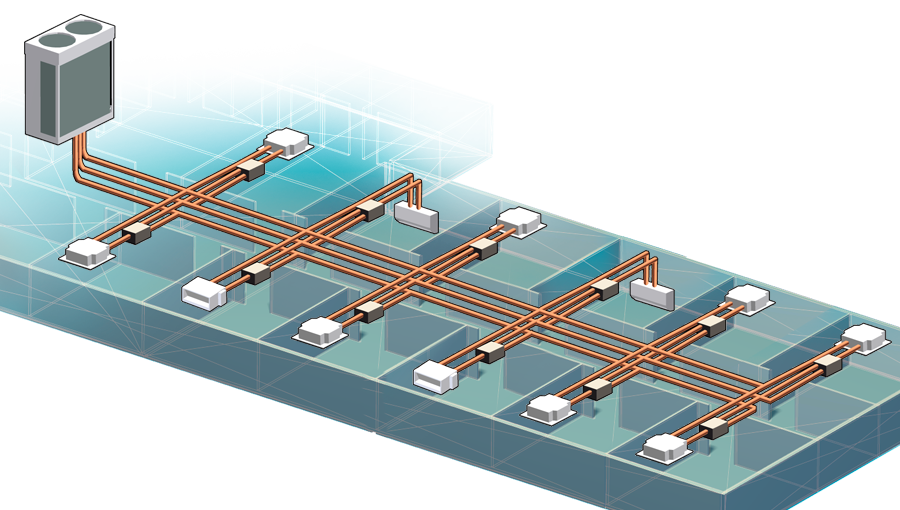

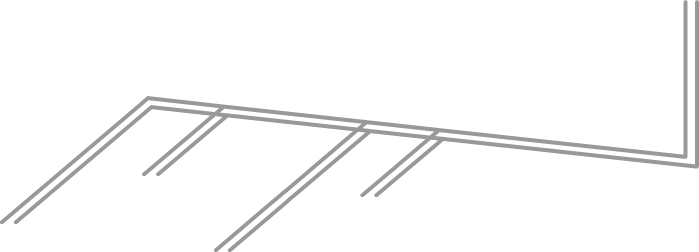

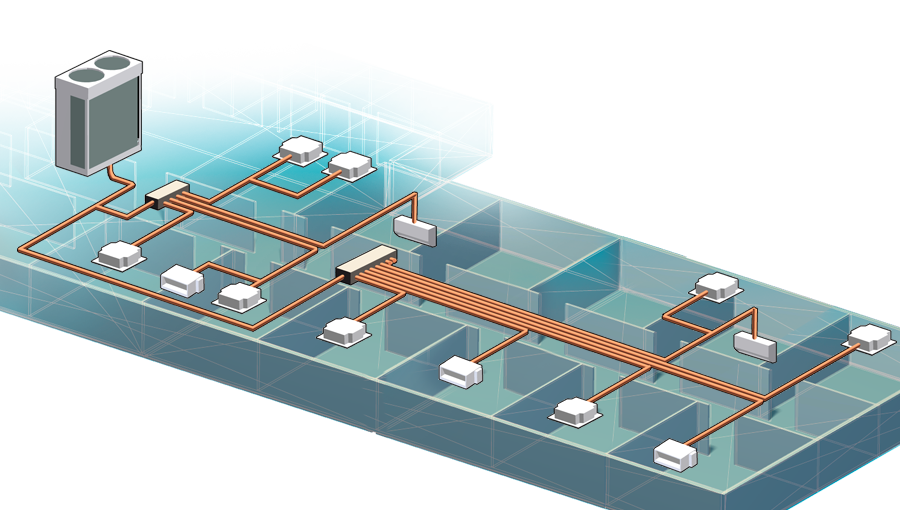

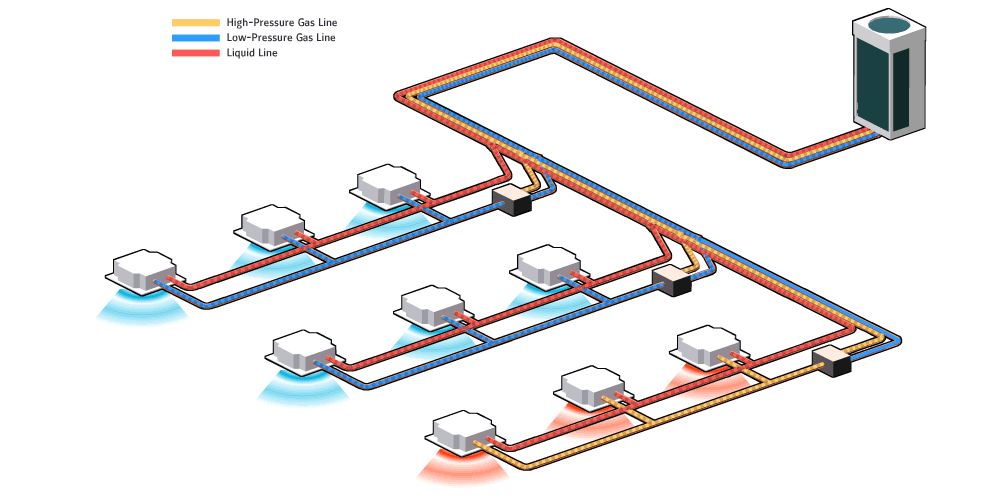

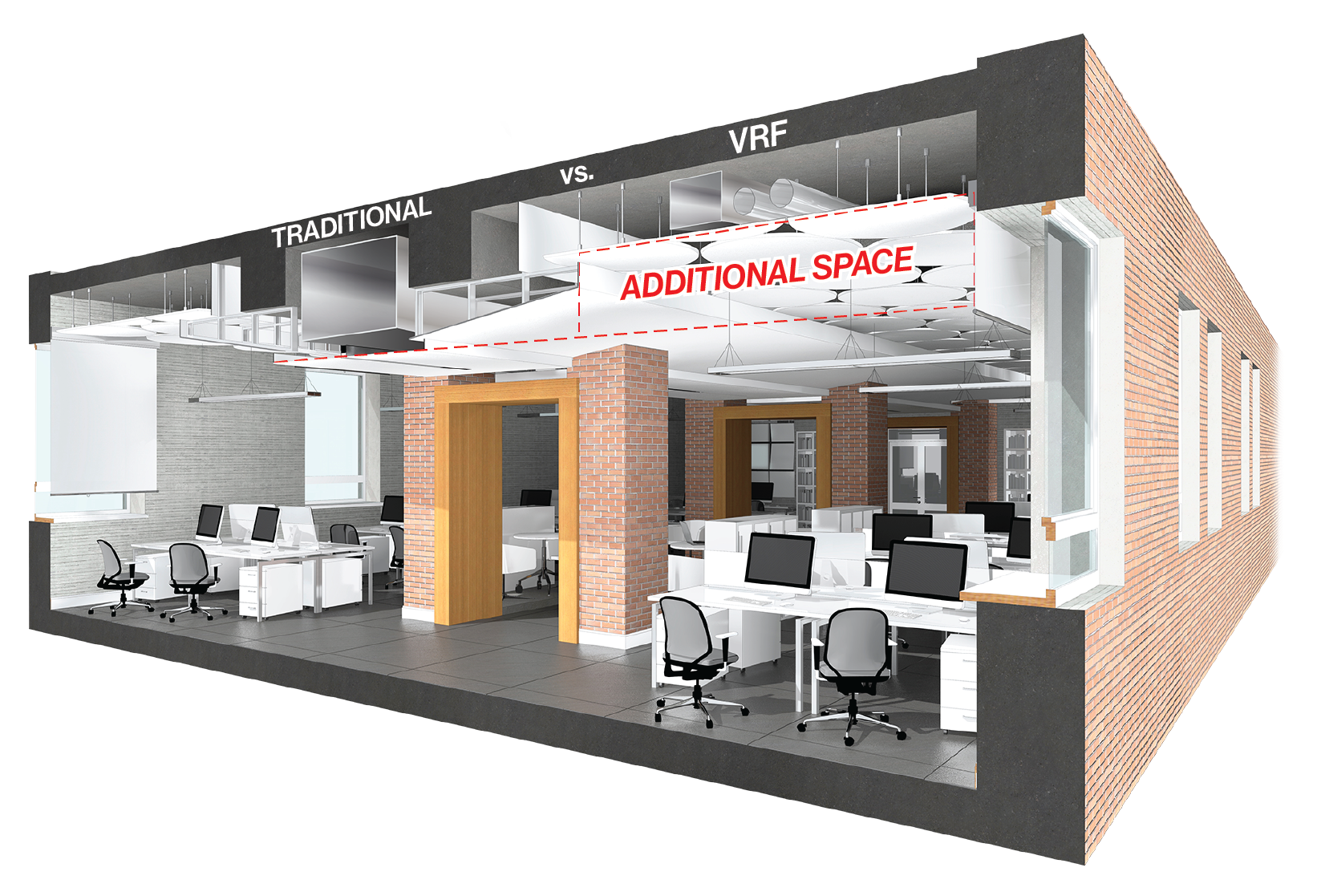

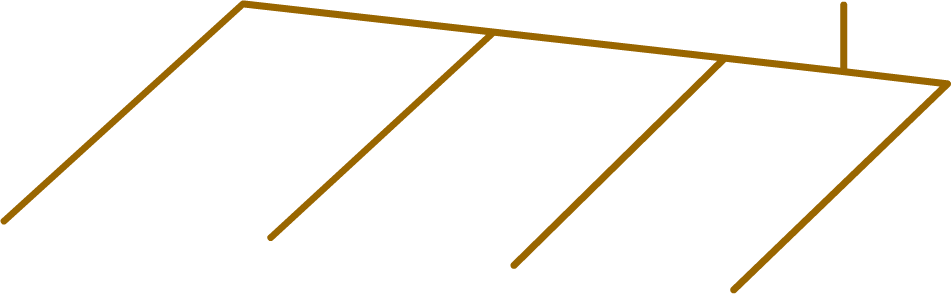

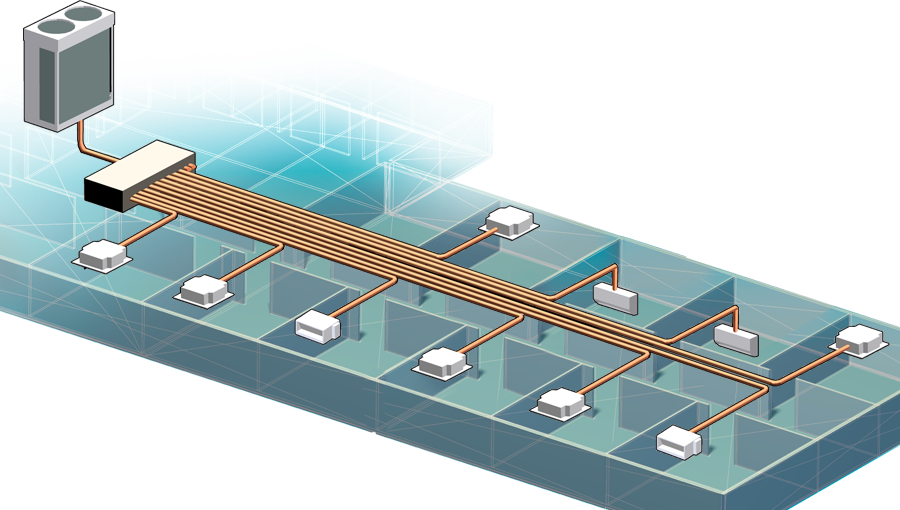

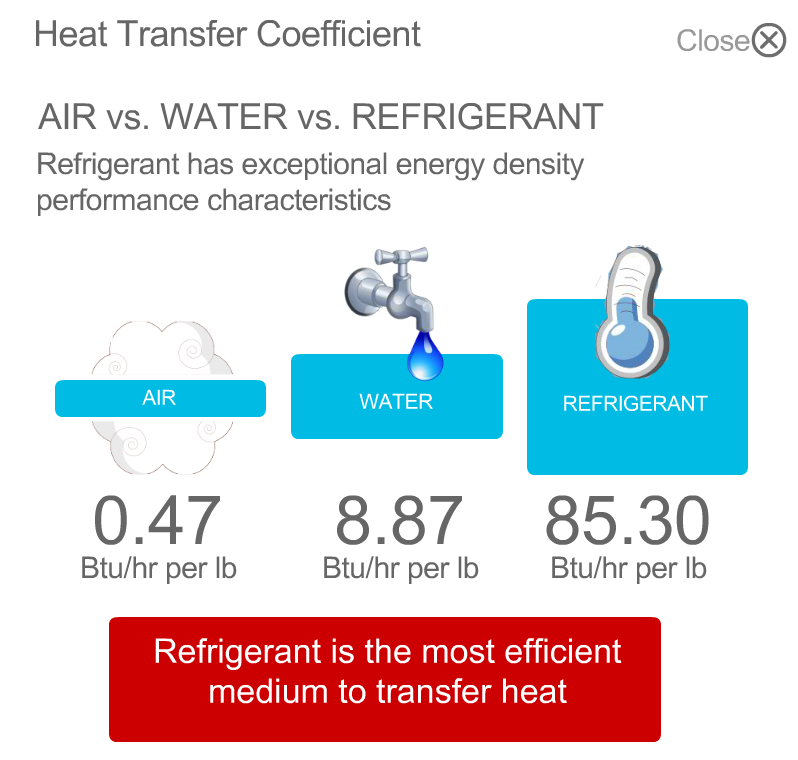

Refrigerant piping requires less space than traditional ductwork, allowing greater design flexibility.
The refrigerant flow rate varies through the lines with the use of an inverter compressor and electronic expansion valves, which modulate to match the load variations as individual rooms require more or less heating/cooling.

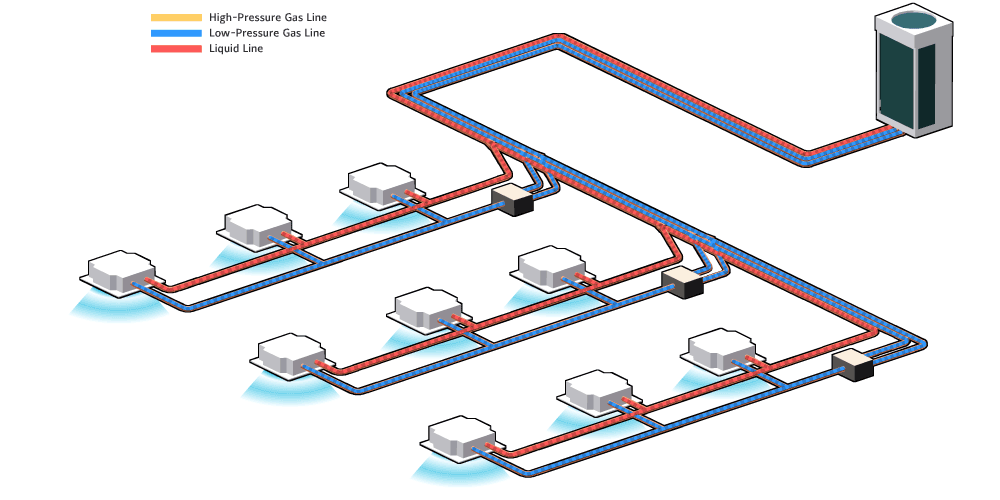

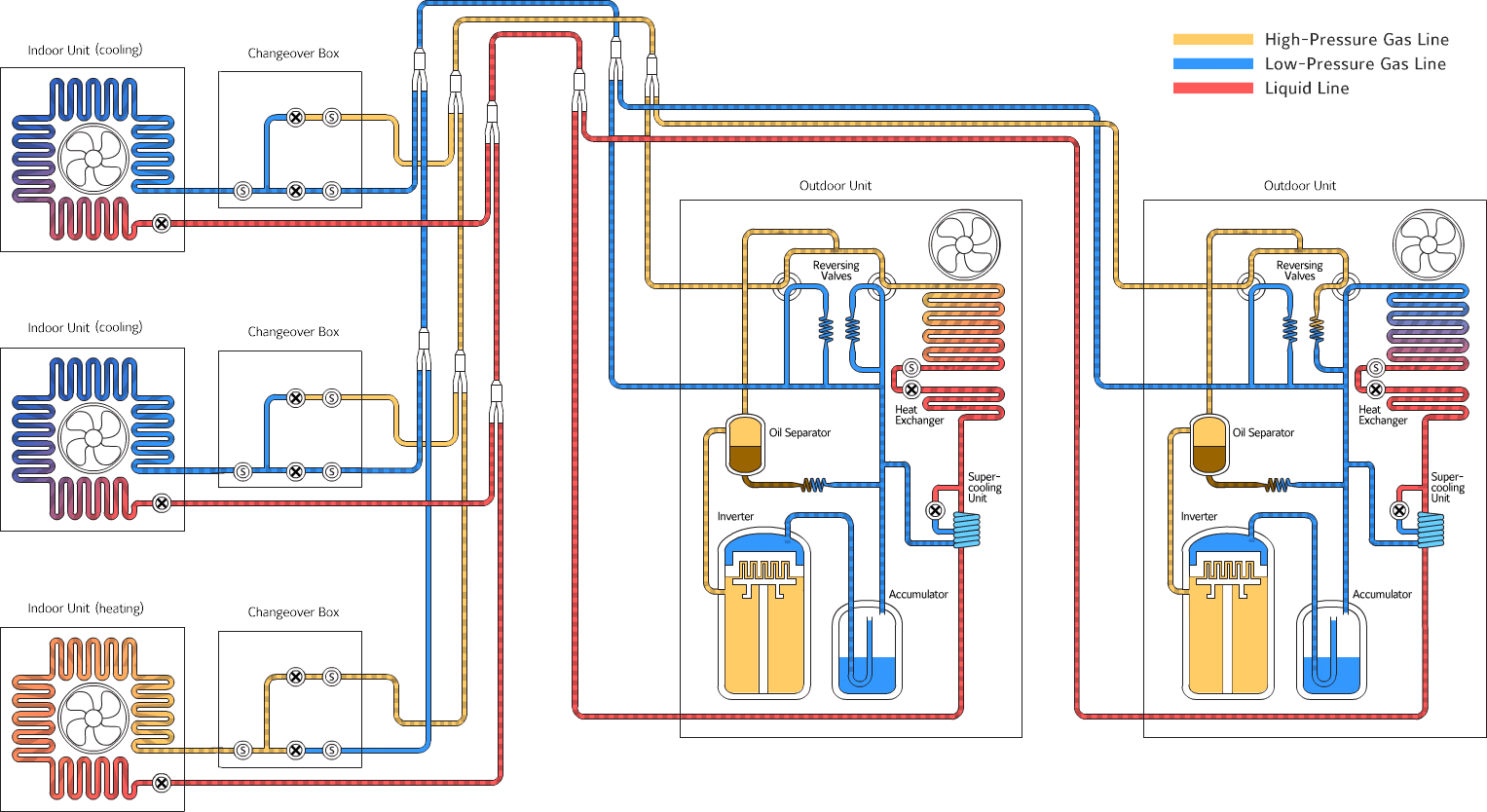

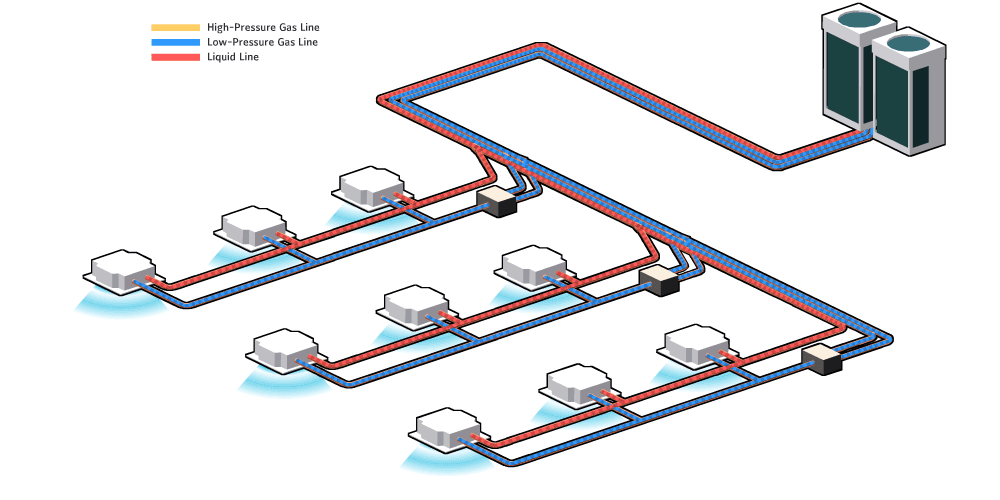

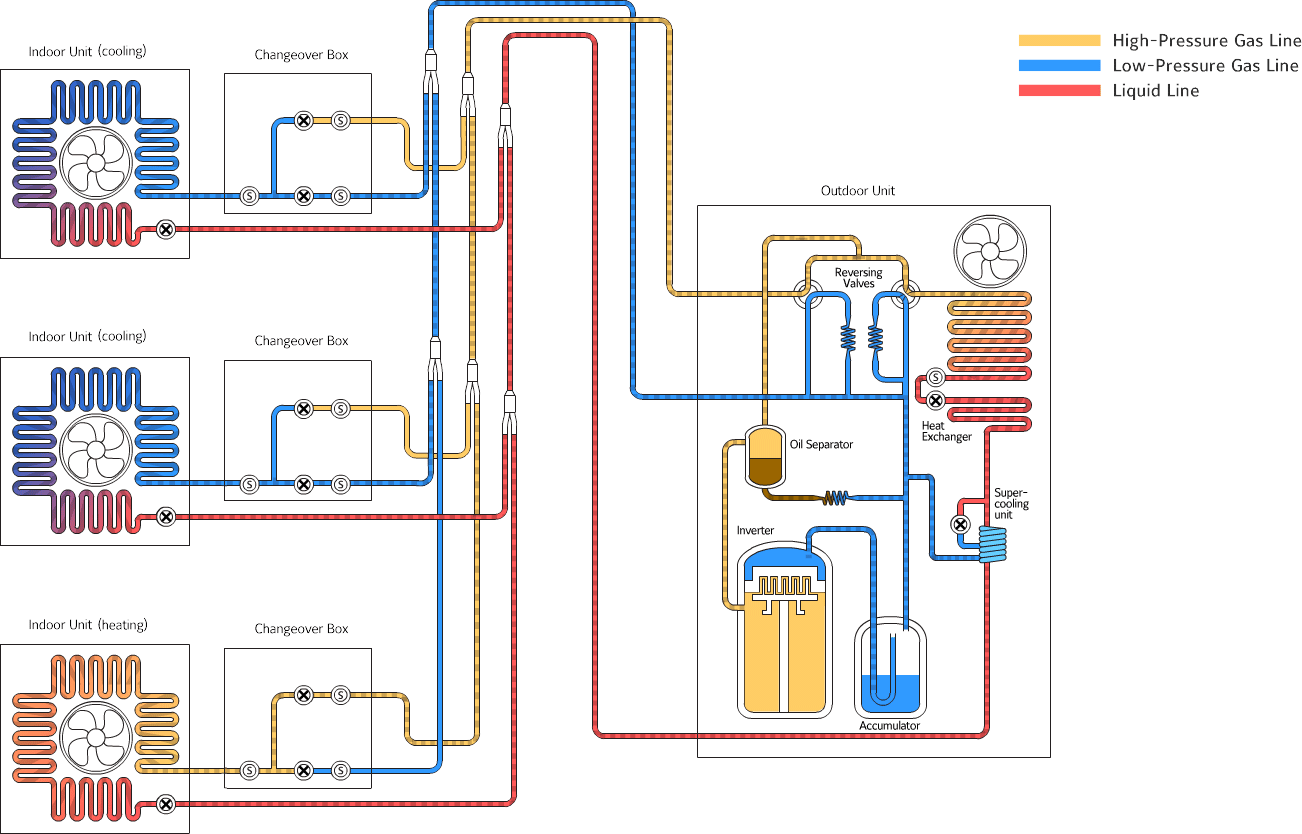

Configured as a 3-pipe heat recovery system.

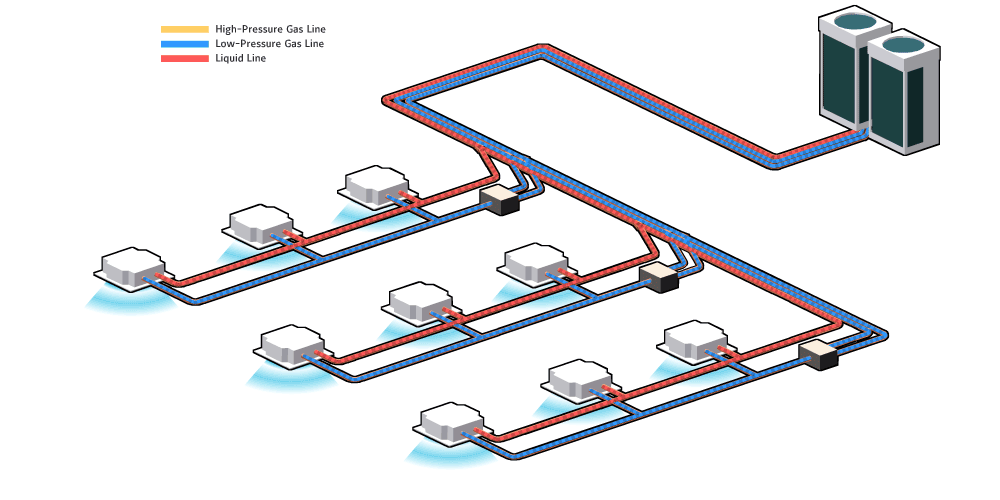

Configured as a 2-pipe heat pump system.

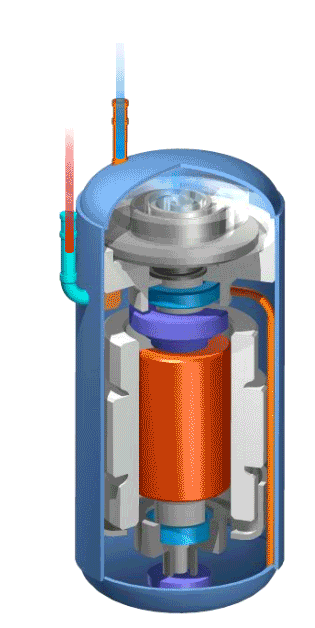

Compressor efficiency is optimized through meticulous attention to the design details of the release valve and orbiting scroll.When synchronized, our compressor maximizes output while minimizing power consumption. The lifting force of the rotating scroll and release tension of the valve have been balanced to limit over compression while minimizing loss through leakage.
This fine tuning of the valve and scroll help make our IEER and SCHE ratings among the highest of all VRF systems in the industry.

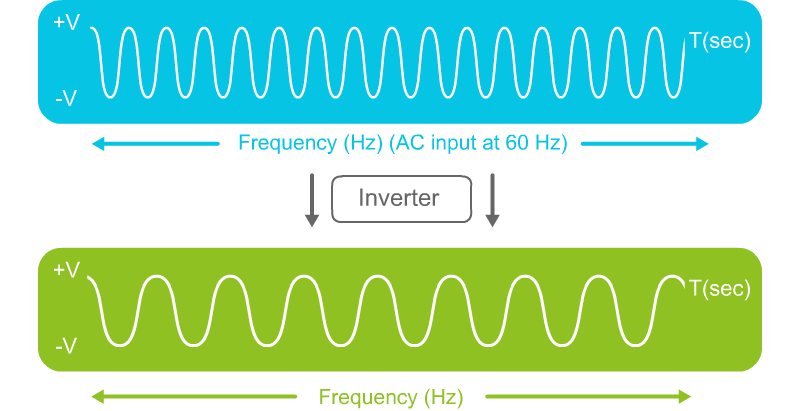

An inverter is a variable speed drive that changes the electrical frequency being fed to a motor.
When this technology is applied to a compressor’s motor, the air conditioning systems operating capacity can be adjusted.

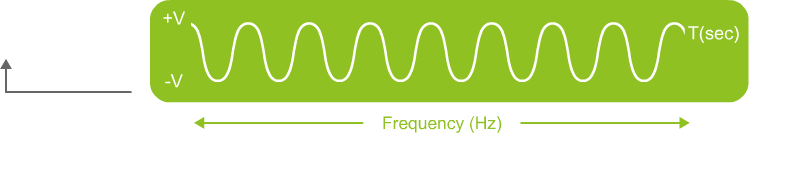

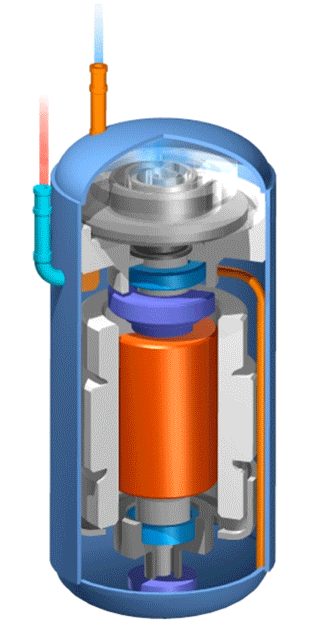

A variable speed compressor consists of an inverter and compressor. The inverter converts incoming alternating current (AC) to direct current (DC).
It then uses pulse width modulation (PWM) to produce AC to a desired frequency. This frequency is used to drive the speed of the compressor motor.
The cooling and heating can be varied depending on a number of inputs such as outdoor or indoor air temperature and humidity, set point, occupancy, etc.
Click and drag on the graphics above to change the speed
Fewer starts and stops, smoother operation
Quieter start
Reduced inrush current
Low running amperage
Increased compressor speed in cold or hot ambient conditions
Enhanced dehumidification possibility with varying compressor speed
Increased motor and system longevity
Better control of compressor in high ambient
Automatically reduces compressor speed and resulting discharge temperature
Opportunity for better system control of peak demand in cooling, heating or excessive electrical demand

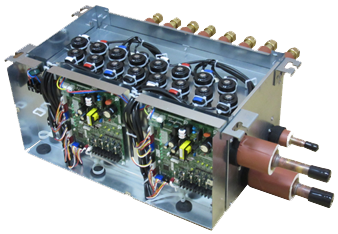

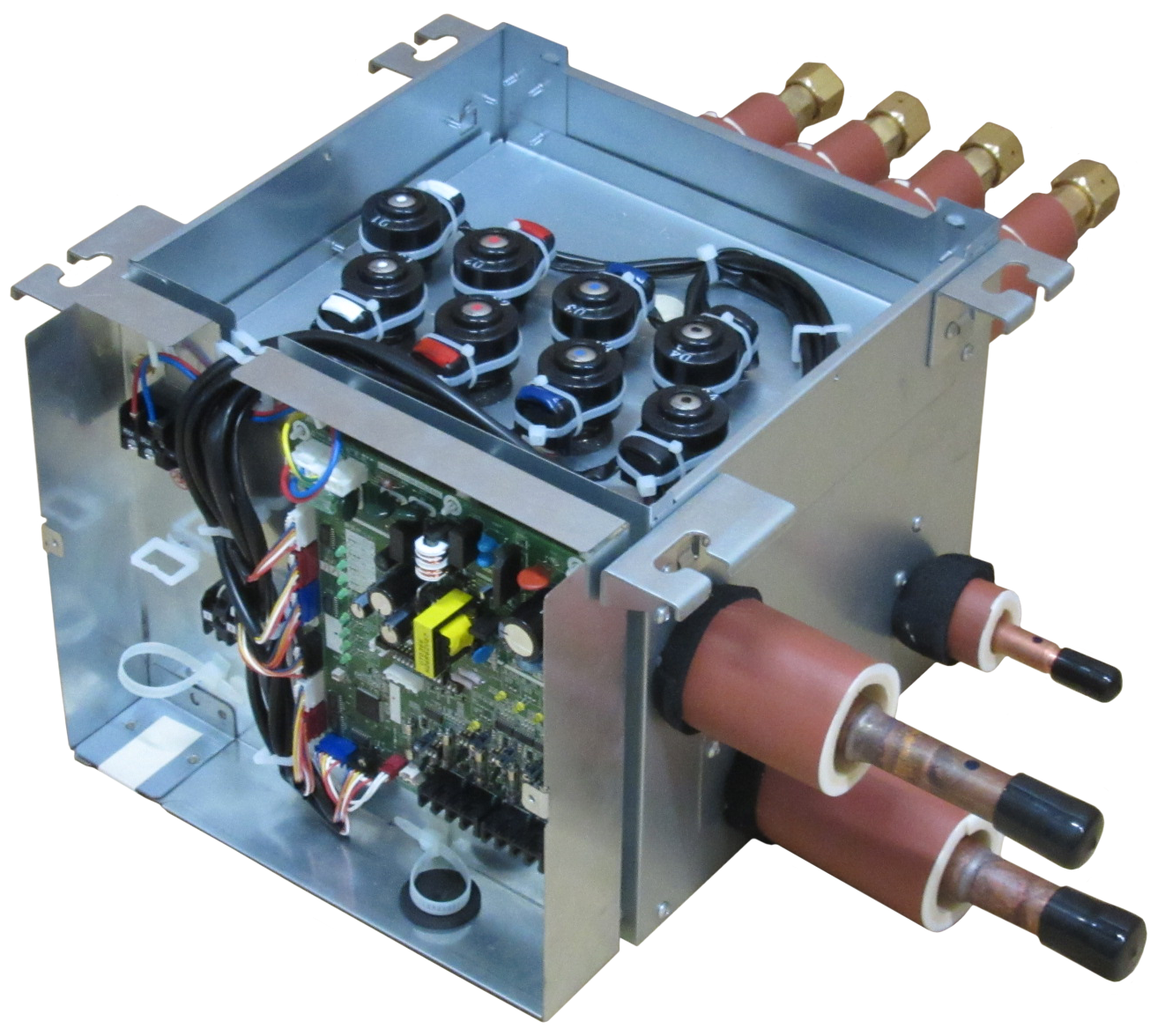

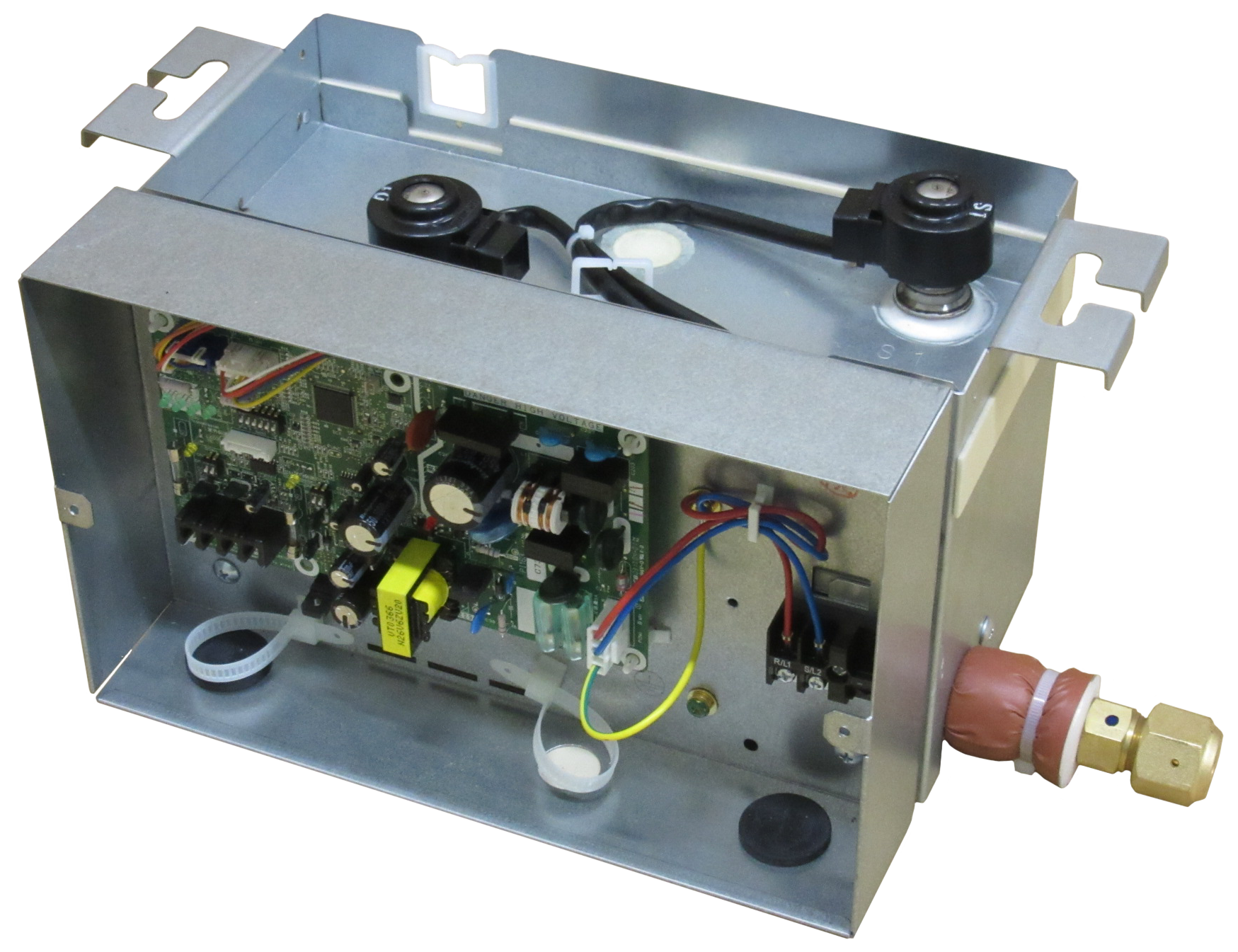

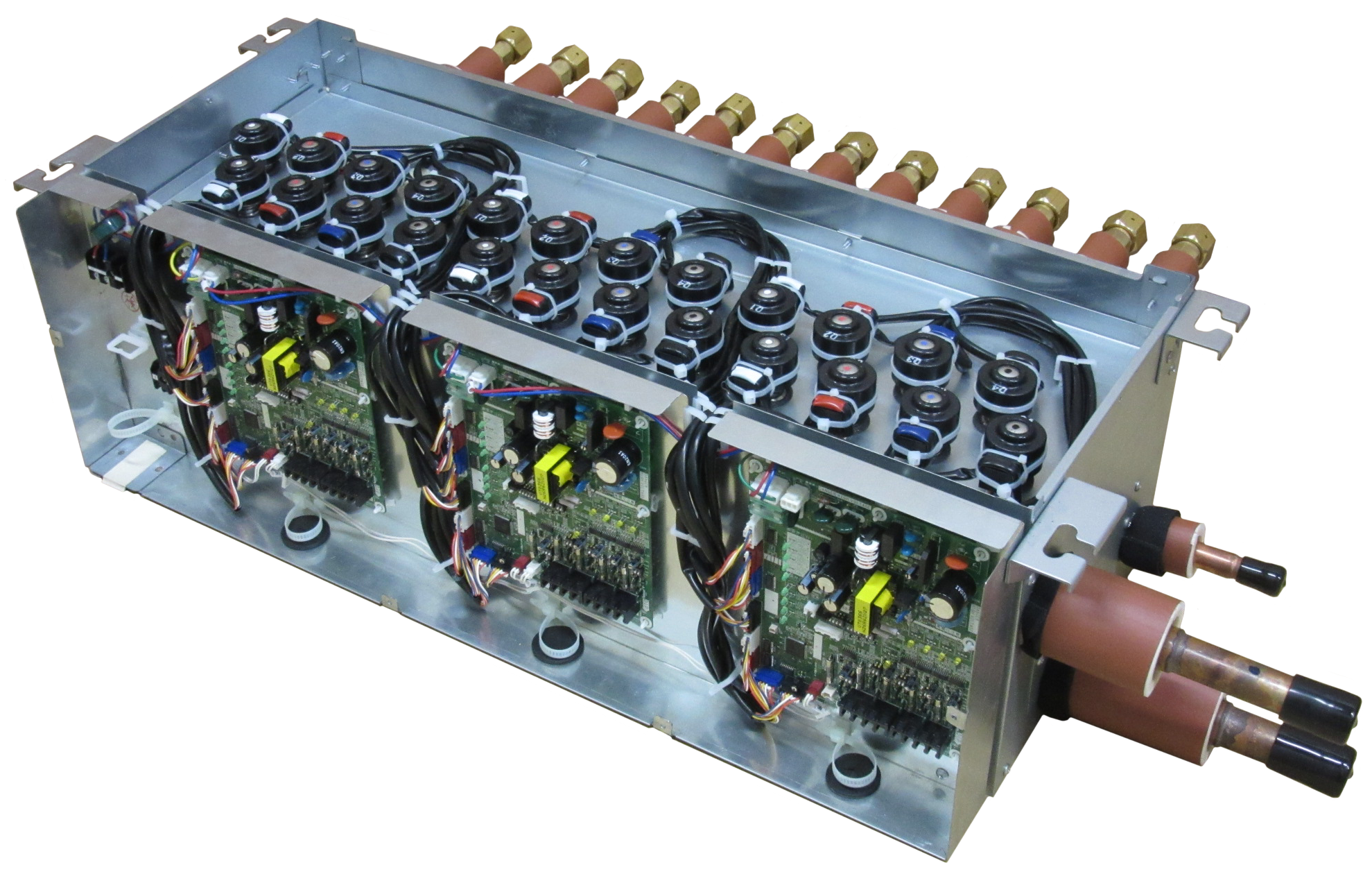

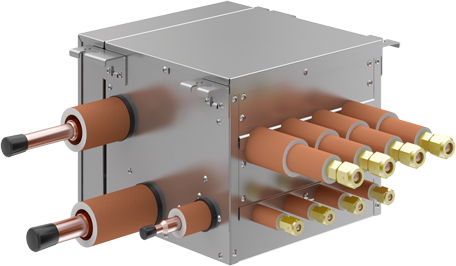

YORK Change-Over-Boxes offer several advantages:
| Max total capacity (Ton): | 4.5 | 8 | Width (" ): | 11.8 |
| Max capacity per branch (Ton): | - | Depth (" ): | 8.4 |
| Max number of IU per branch: | 7 | 8 | Height (" ): | 7.5 |

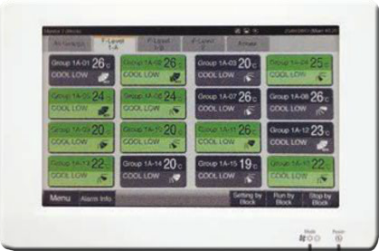

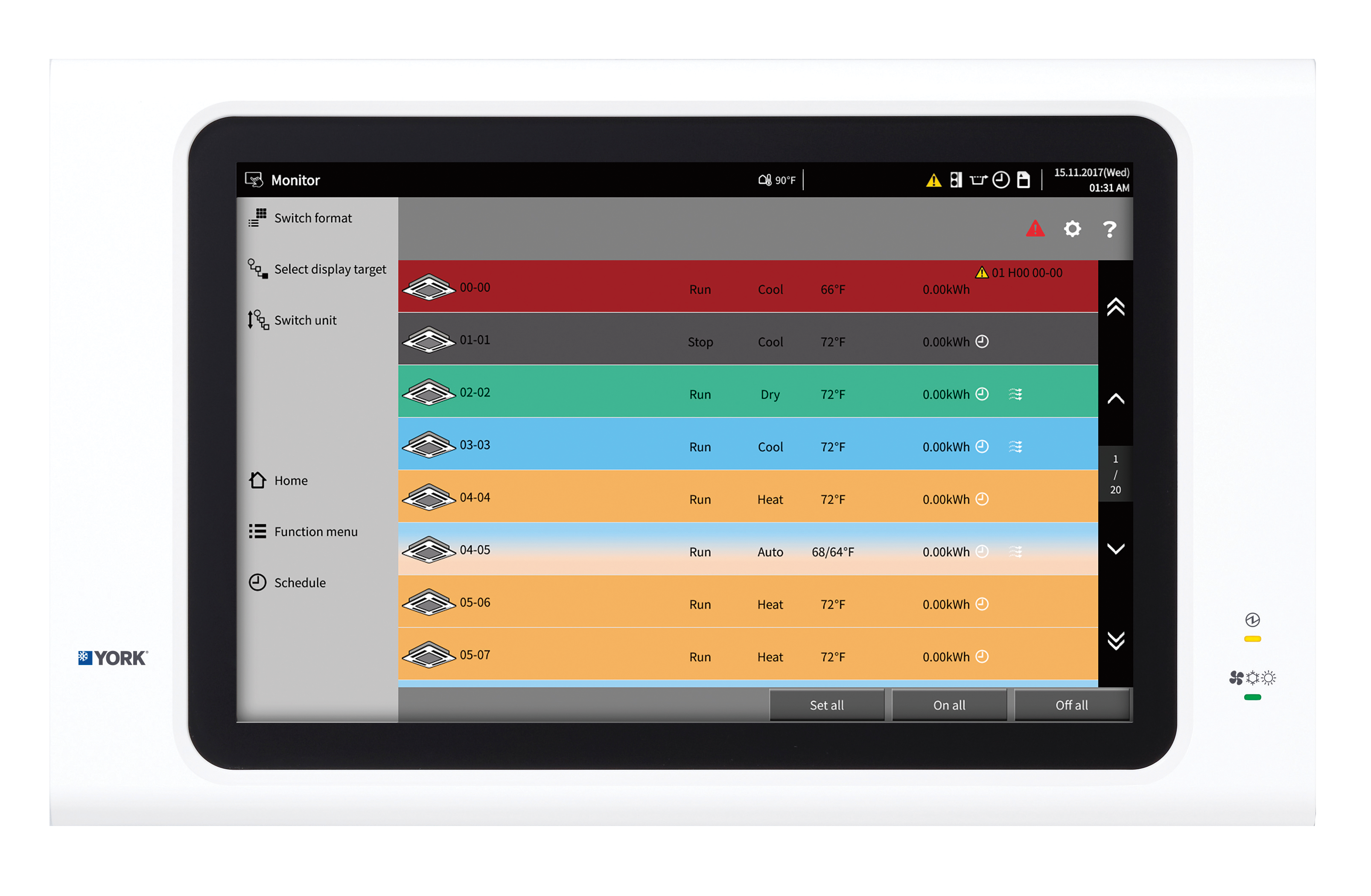

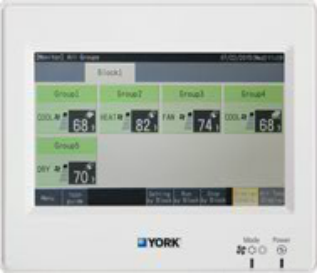

Controllers are available in a range that accommodates systems installed in buildings from small to large.

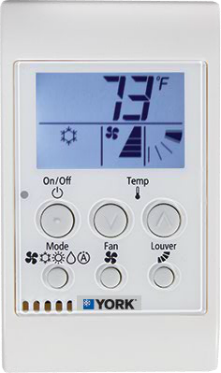

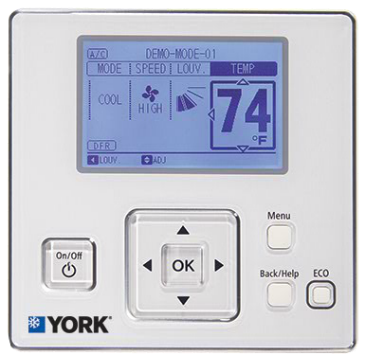

Standard wall controller
Controls temp, mode, fan speed
7-day timer with multiple setpoints
Control up to 16 indoor units
Built-in 24-hour timer
Help menus and error code diagnosis
Small size
Controls 1 to 16 indoor units (same settings)
Error code diagnosis
Adjustable fan speed
Typically used in hotels, offices and restaurants
Control up to 16 indoor units
Built-in 24-hour timer
Wireless receiver must be added for all indoor units except wall-mount models (built-in)

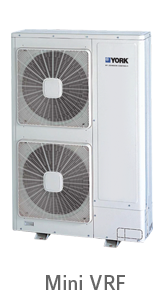

Mini and large systems are available.
Mini and large systems are available.
Two connection options exist for outdoor units installed in the interior of a building.
Air Outlet Duct Kit
(Field-Supplied)
Outdoor Unit

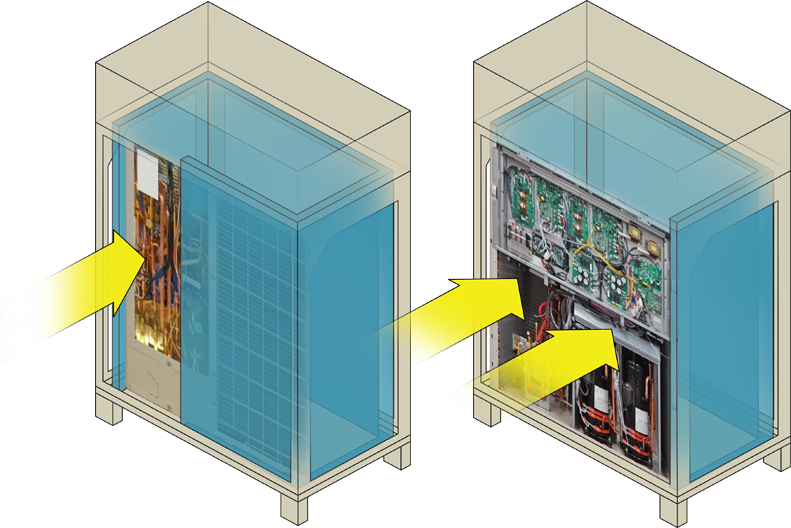

The air flow direction can be changed to open space by using air outlet duct kit.
Air Outlet Duct Kit
(Field-Supplied)
Duct
(Field-Supplied)
Outdoor Unit
The recommended air outlet duct kit has flanged opening which makes the field connection work possible.

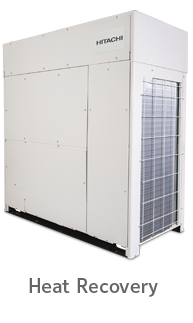

A heat recovery system offers high energy-saving efficiency by drawing heat from the rooms to be cooled, and effectively using it as a heat source for the rooms to be heated.
Only currently occupied areas of the building are maintained at comfortable levels.
With our advanced control system and heat recovery units working together, each zone is comfortable and the transition from heating to cooling is efficient.
Consider an office building, at 3:30 in the afternoon on a 55 degree day, but very sunny.
On the west side of the building, the sun is shining, warming the space to the point that it could use some air conditioning.
The east side of the building is in the shade, cold, and needing heat from the VRF system.
With the heat recovery VRF system, heat is taken from the west side of the building (thus cooling it down) and moved to the east side of the building.
Because the outdoor unit isn't required to use the compressor to generate the heating (east side) or cooling (west side) efficiency is extremely high.
- tailored to any building
- System engineered to meet your building's diversity
Available for heat pump or heat recovery applications
With an air outlet kit, the unit can be installed inside the building
Extended piping limits increase flexibility and save cost.
Outdoor units can connect with multiple indoor units in various styles.
For larger buildings, refrigerant piping accomodates total lengths up to 3,280 ft.
Systems can be connected with up to 64 indoor units.

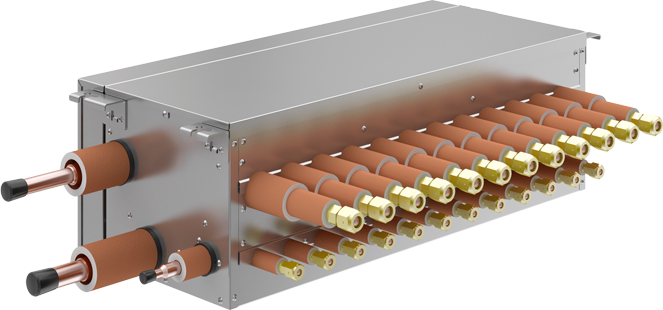

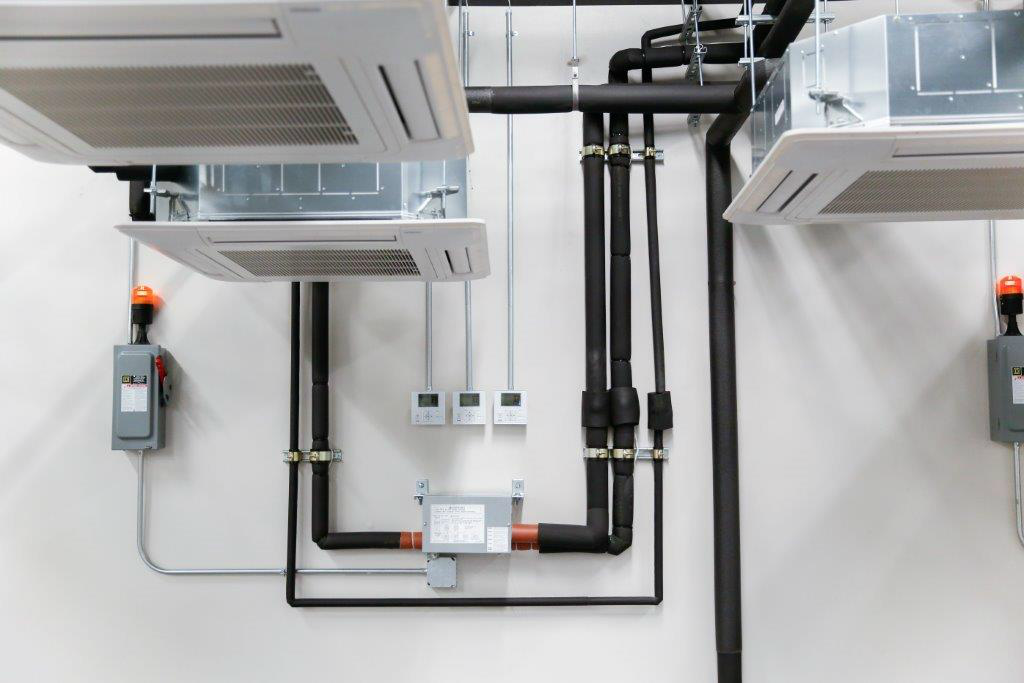

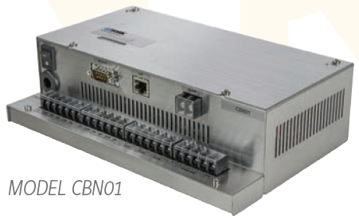

VRF Change Over Boxes:

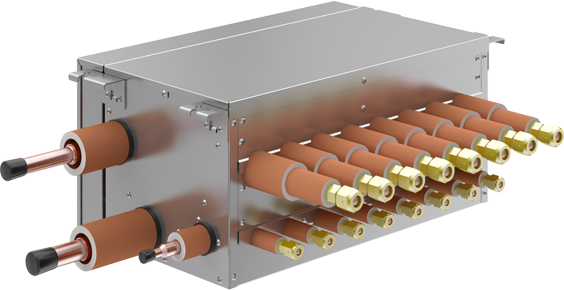

A full line of single and multiple port change-over-boxes are offered to meet a wide variety of design requirements.

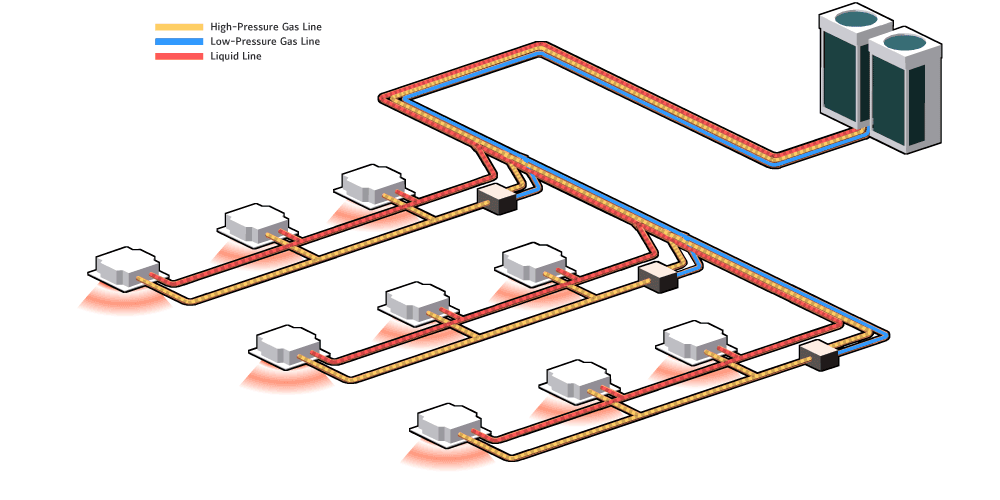

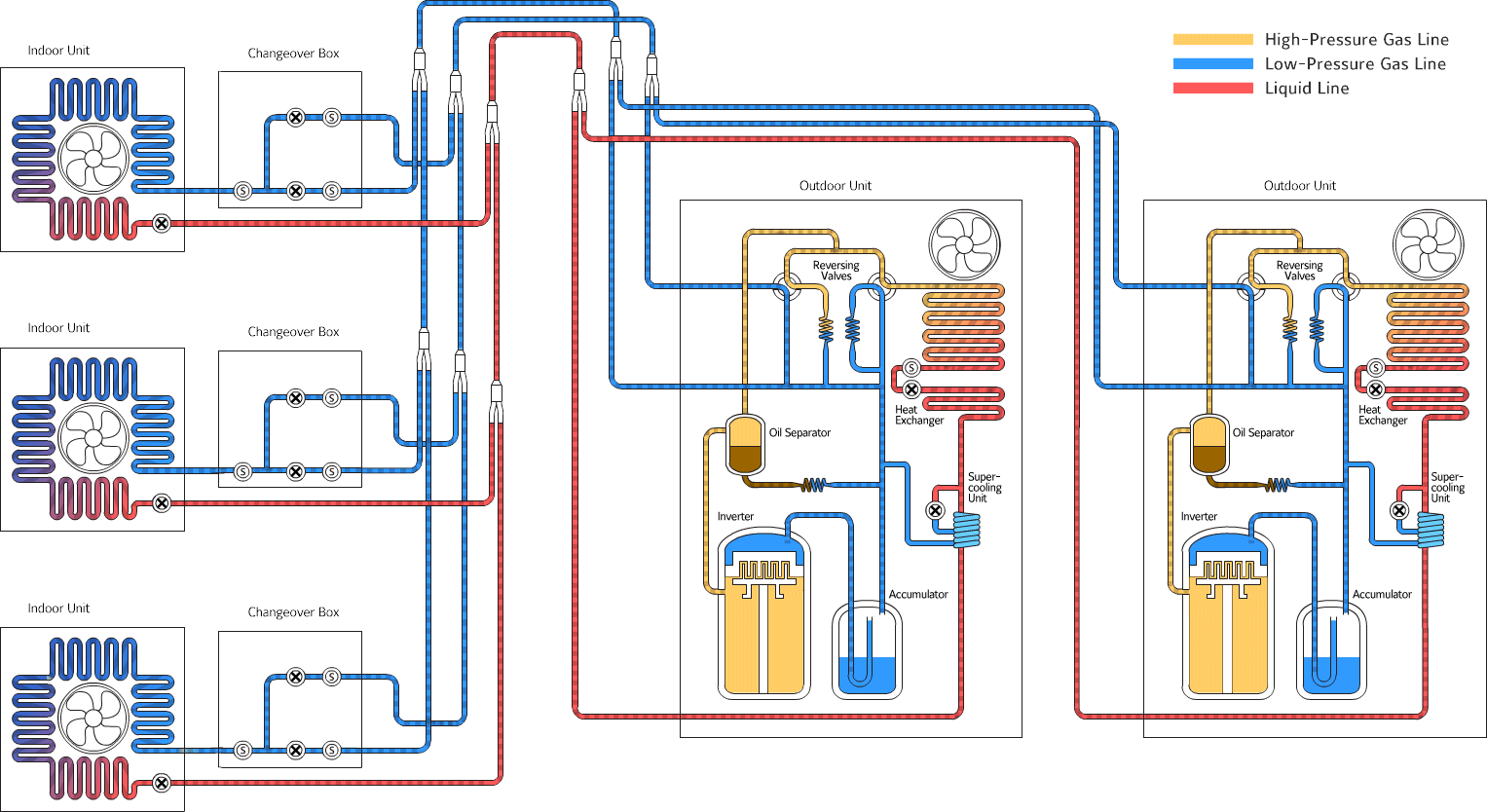

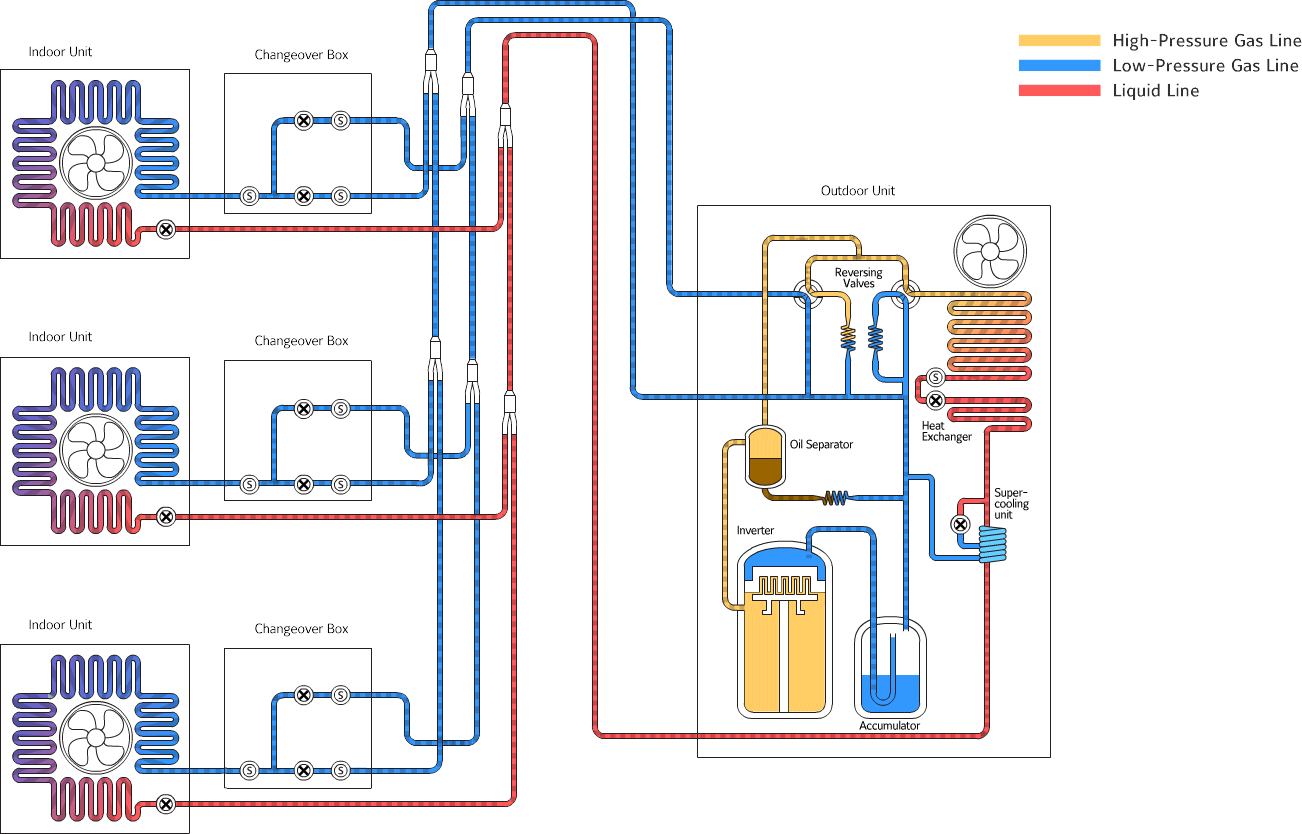

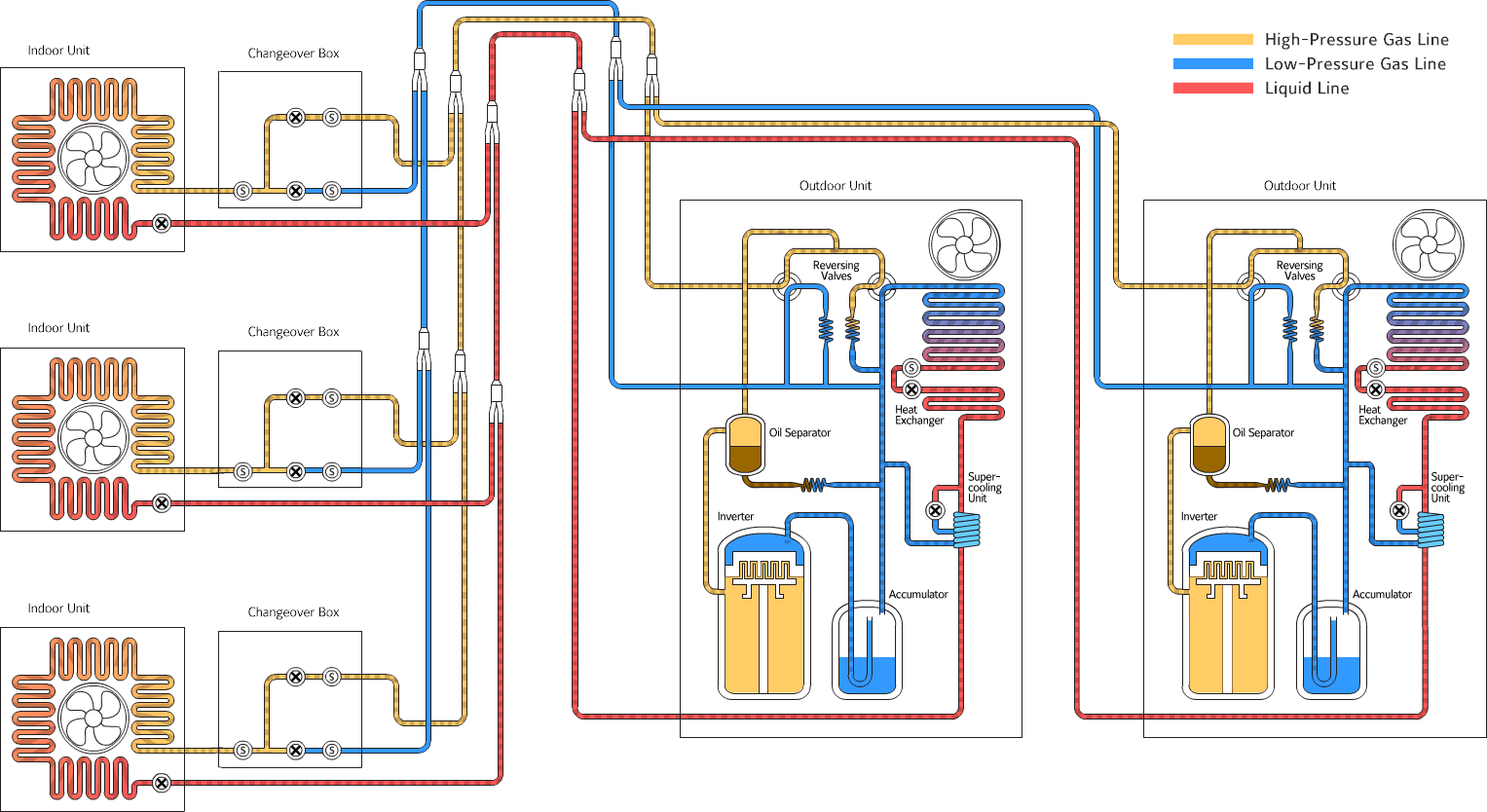

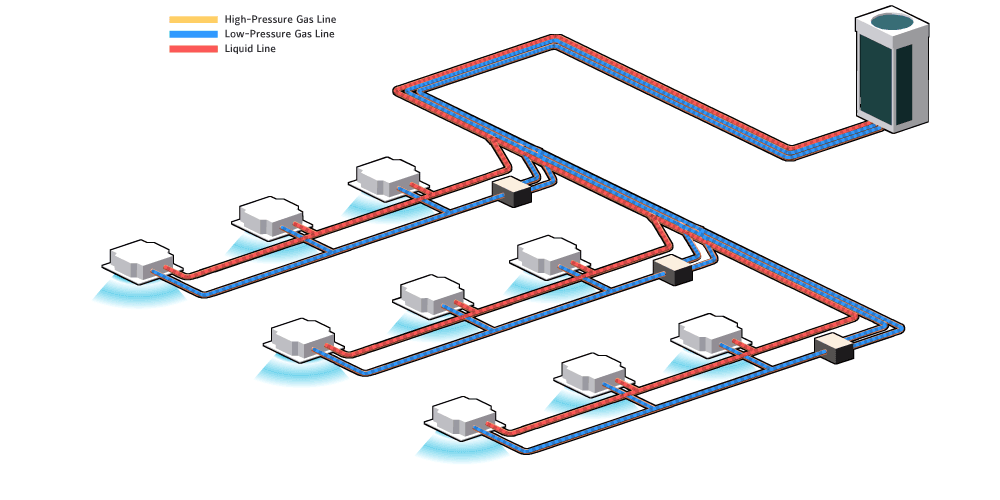

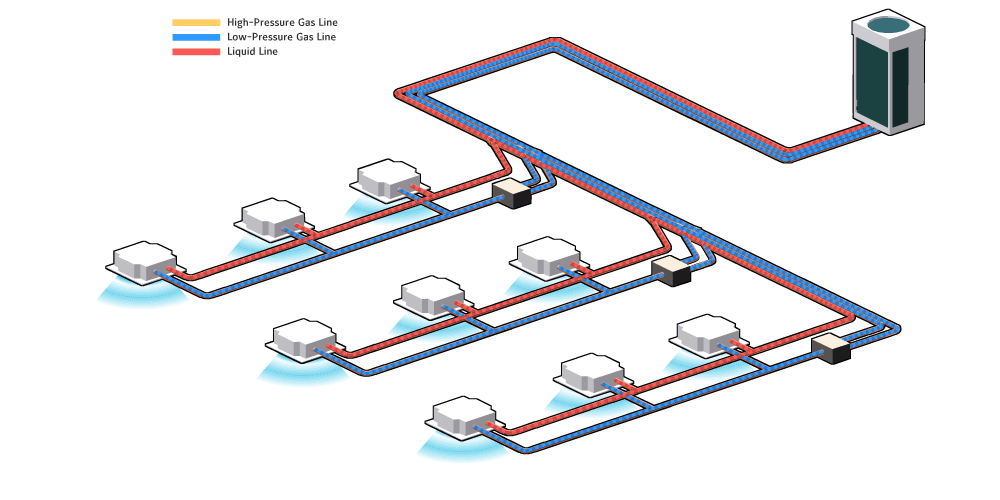

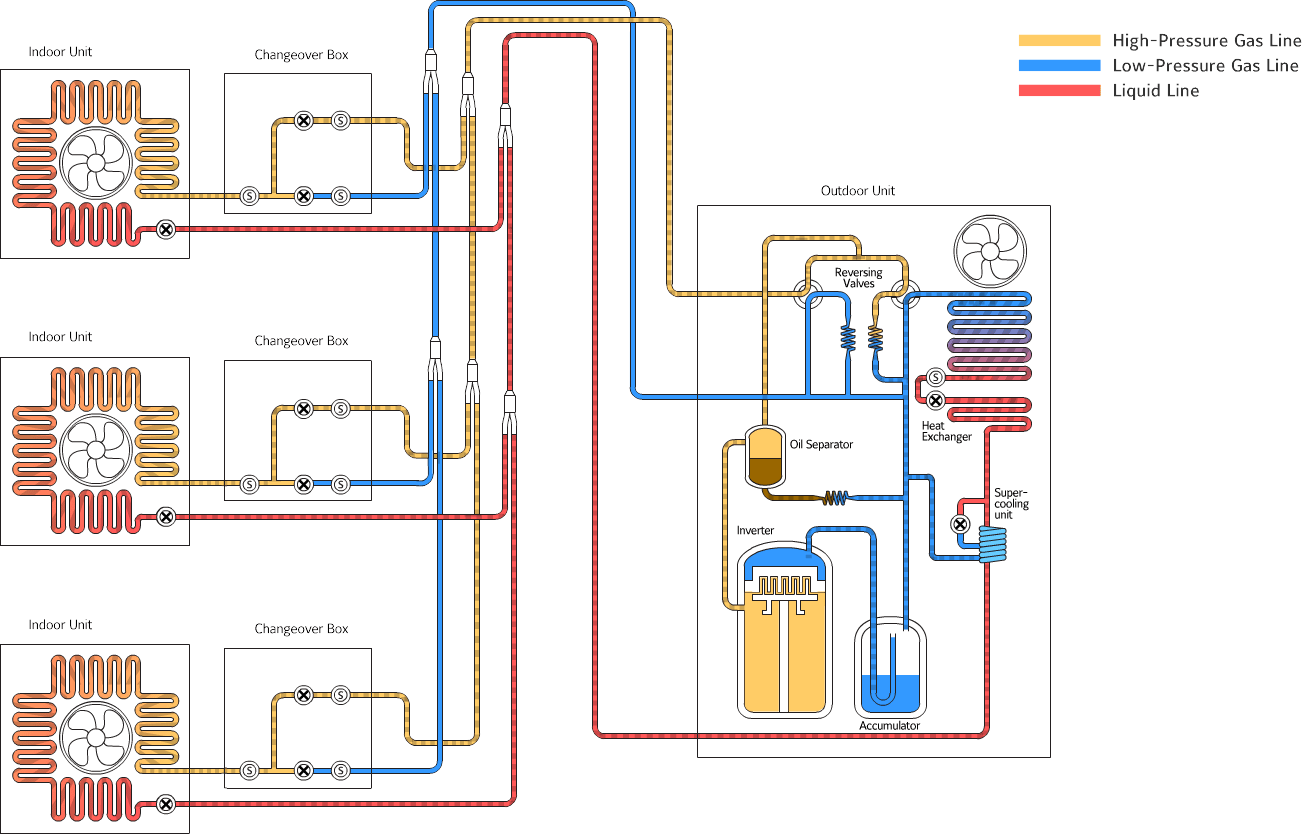

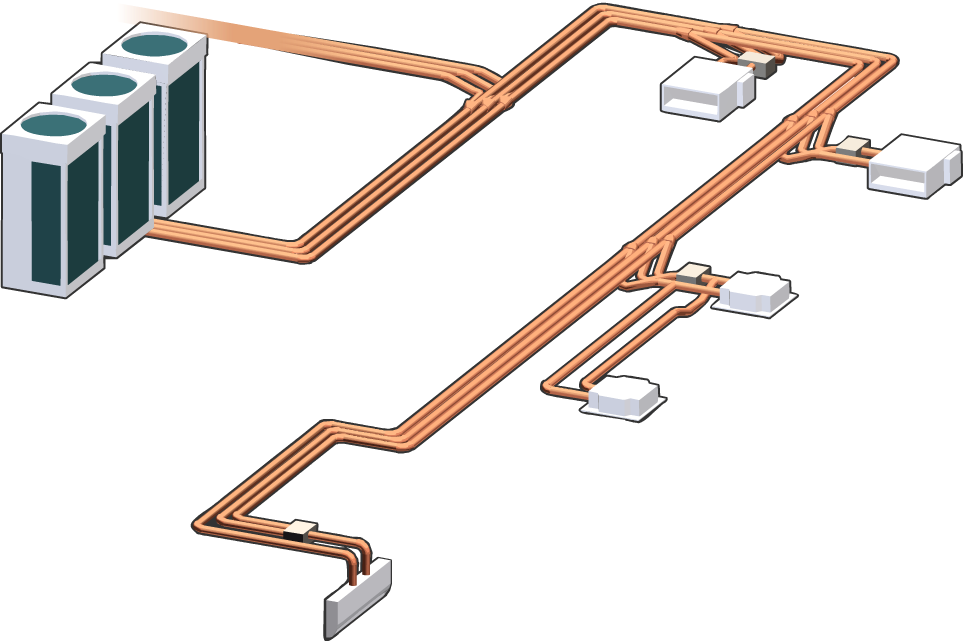

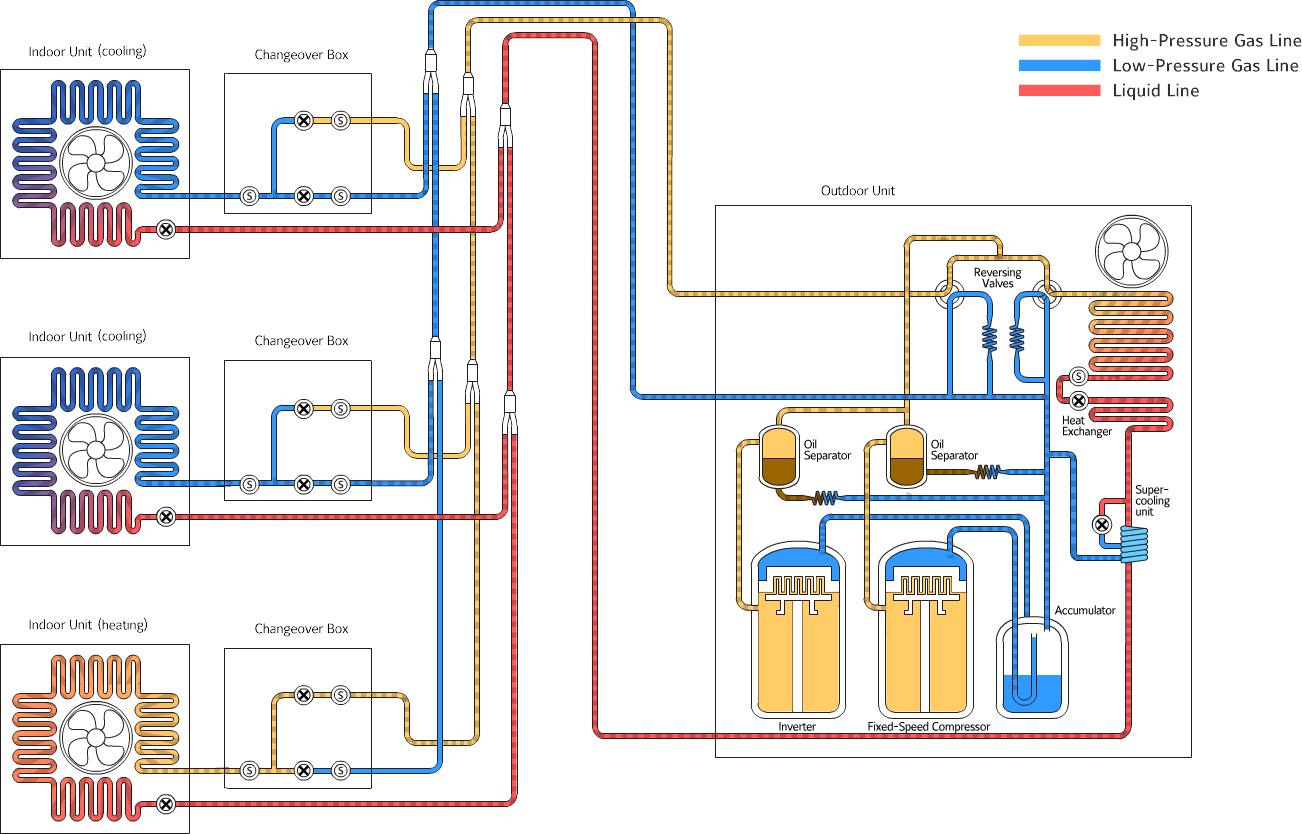

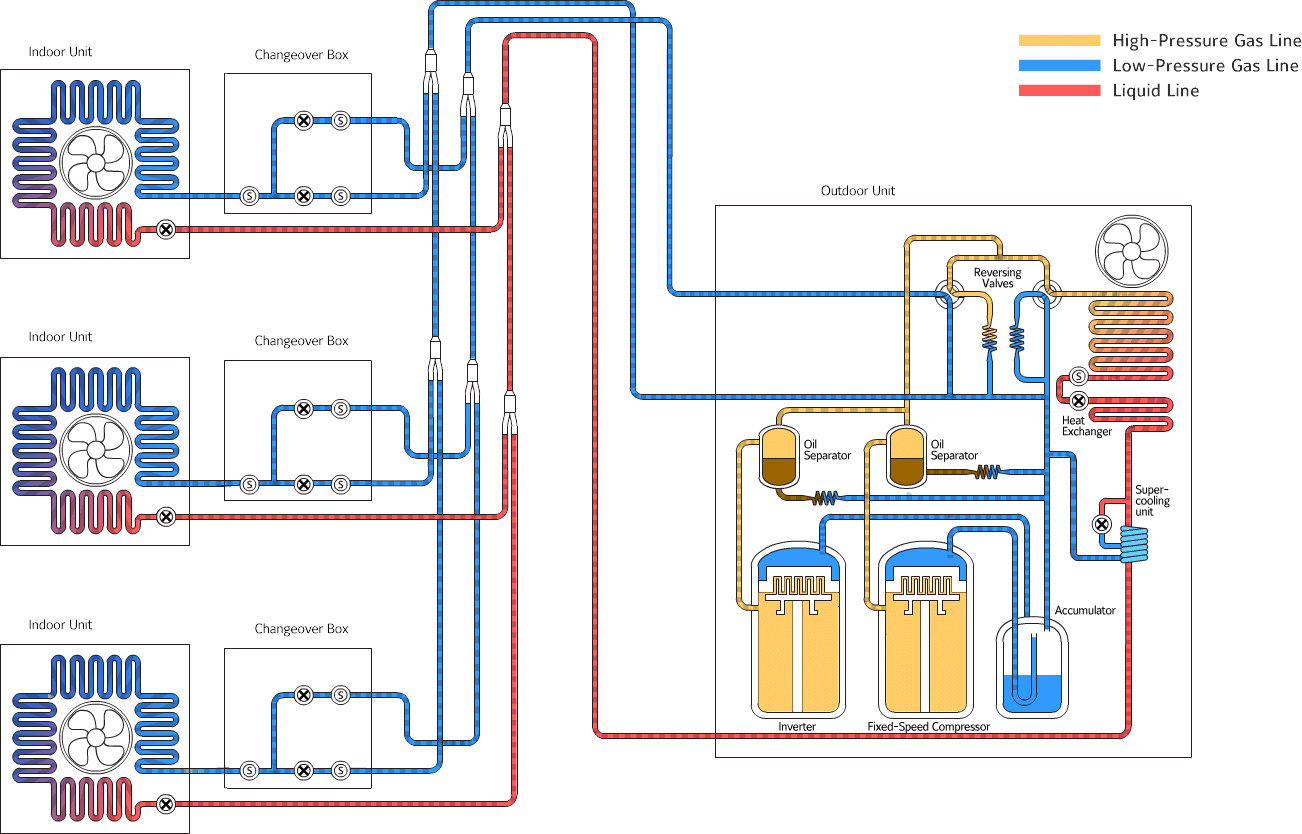

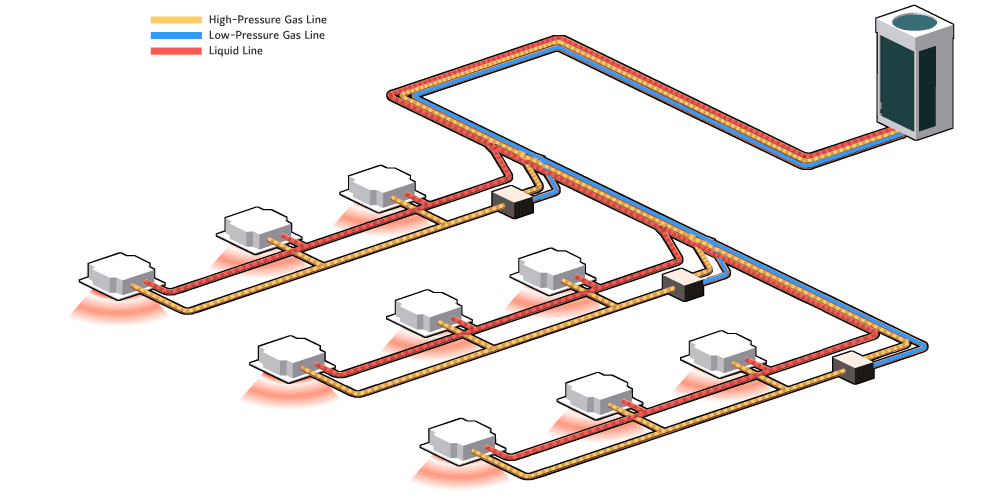

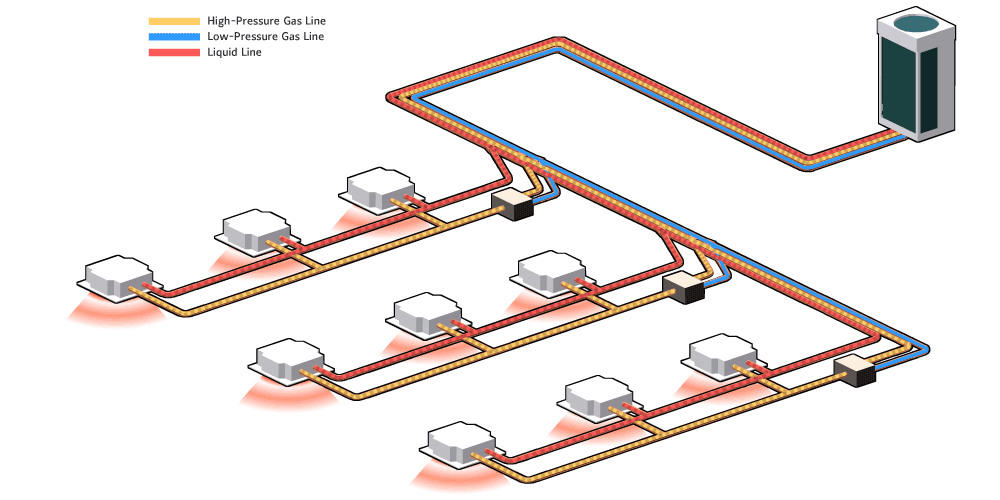

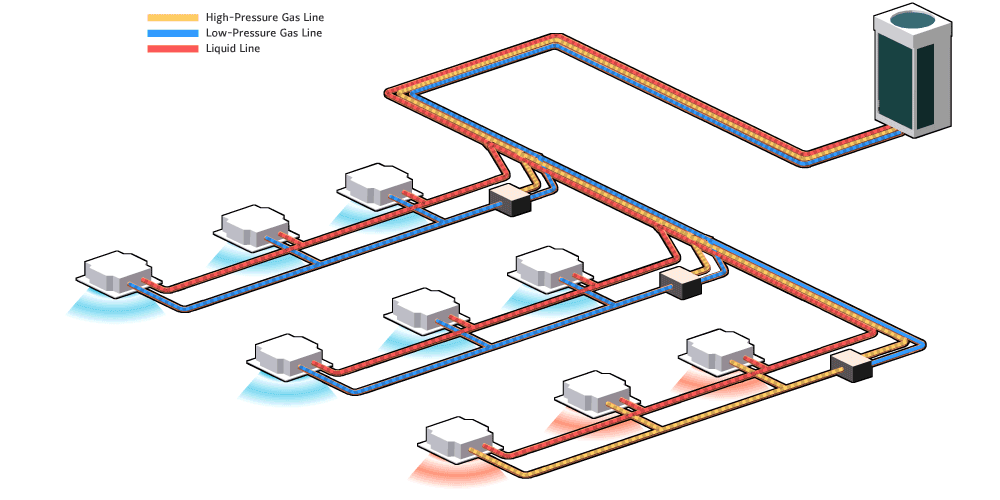

Click on each system name to see the piping layout
YORK VRF systems provide industry leading efficiency since state-of-the-art DC inverter scroll compressors modulate the amount of refrigerant to meet demand. The result is precise comfort control and maximum efficiency at partial loads, which is the state in which most HVAC systems operate the most of the time.
Click on each model to view the efficiency ratings.
Click on each device to see that device's temperature operating range.
Outdoor ambient temperature operating range -10°F to 122°F in cooling mode with low ambient kit and -13°F to 59°F in heating mode.

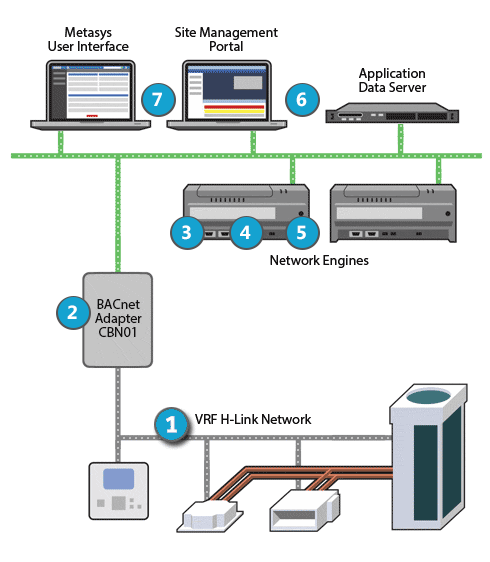

Setup and configure VRF H-Link Network
H-Link Cabling Specs
Setup and configure BACnet Adapter
Add a BACnet IP Integration to a Metasys Network Engine
Discover the BACnet Adapter
The entire VRF system is represented by a single device. This means the VRF system lacks depth and definition when viewed in Metasys.

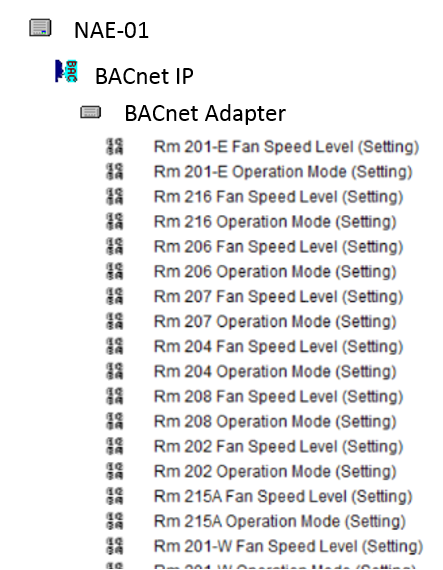

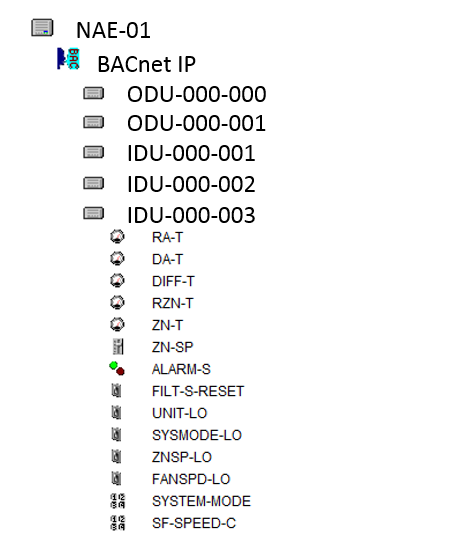

Discover the BACnet points of the VRF units
A flat list of points is difficult to manage.

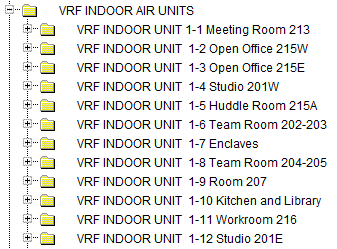

On the Metasys Server, organize the BACnet points by VRF unit using Folders in User Views
Organizing the BACnet points into folders is a time-consuming activity. .
Create separate graphics for each VRF unit
Separate graphics use more resources and require more time to create.

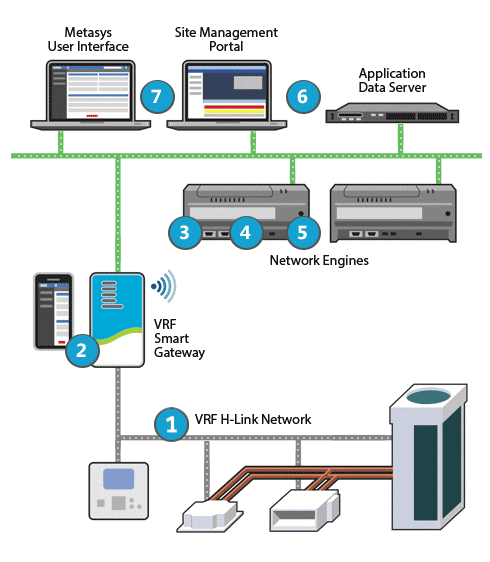

Setup and configure VRF H-Link Network
H-Link Cabling Specs

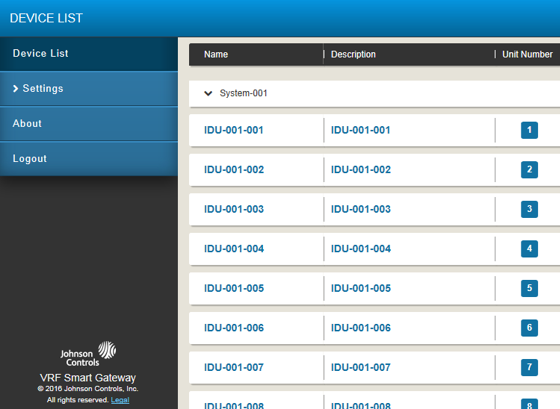

Setup and configure the VRF Smart Gateway
A convenient web UI that is accessible to Wi-Fi capable devices makes configuration quick and simple.
Add a BACnet IP Integration to a Metasys Network Engine
Discover individual VRF units and map each into Metasys
The VRF system is represented by the individual VRF devices. Organization is logical and automatic.
Discover the BACnet points of the VRF units.
BACnet points are consistently and automatically organized per VRF unit.
Nothing to do here since the VRF units are already organized in Metasys.
This saves hours of time during integration.
Create one aliased graphic that is reusable by all VRF units.
It is easier to maintain a single graphic.

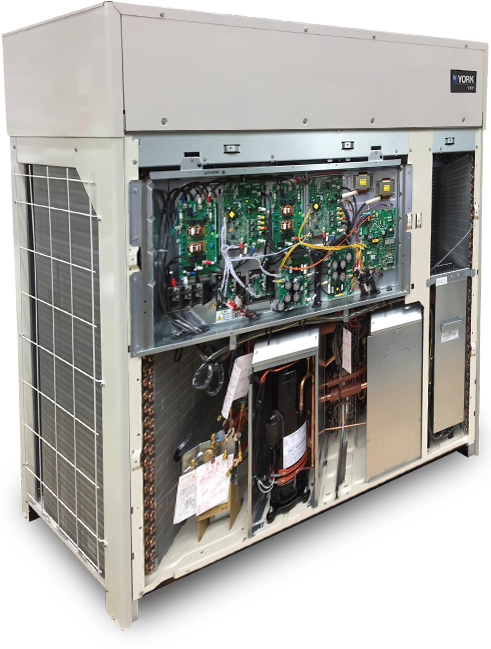

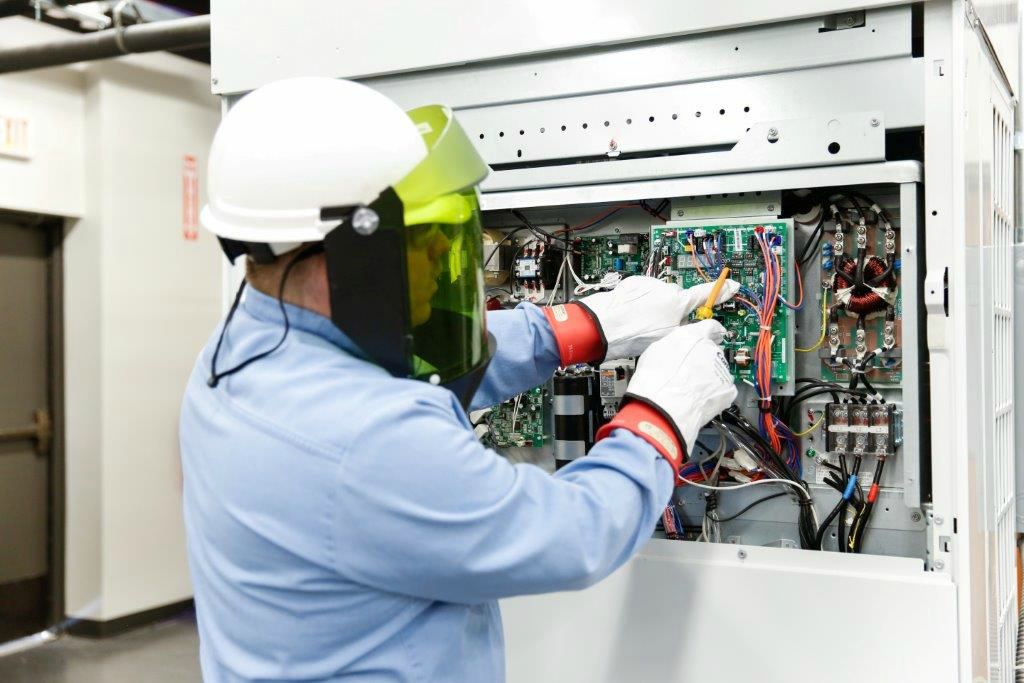

Outdoor Units have been designed for easy service and maintenance which saves time needed for service, maintenance and troubleshooting The design of the heat exchanger enables easy access to the compressor and internal components.
Competitor
YORK
Johnson Controls, Hitachi, Ltd. And Hitachi appliances, Inc. have a global joint venture agreement and now have operations as Johnson Controls-Hitachi Air Conditioning to provide global customers with a full range of world class air conditioning products and technology.
Through the agreement, Johnson Controls has acquired a 60 percent ownership stake of the new entity, which has more than ¥350 billion in sales annually (approximately $2.8 billion). Hitachi Appliances retains ownership of the remaining 40 percent of the company.

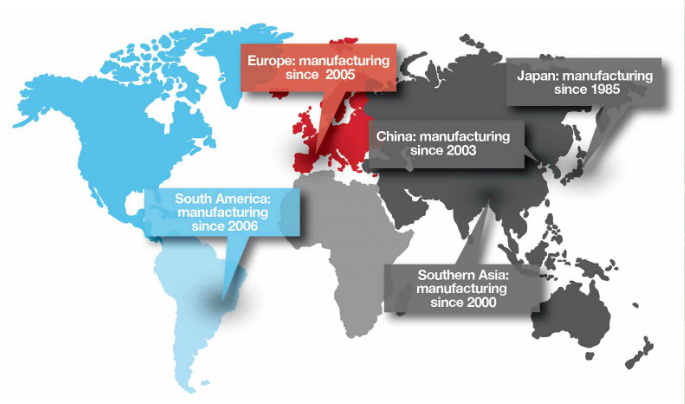

The joint venture has approximately 14,000 employees and 24 global locations dedicated to design, engineering and manufacturing throughout Asia, Europe and Latin America. It will build on both organizations’ technology, research and development leadership, as well as expanding marketing channels.
